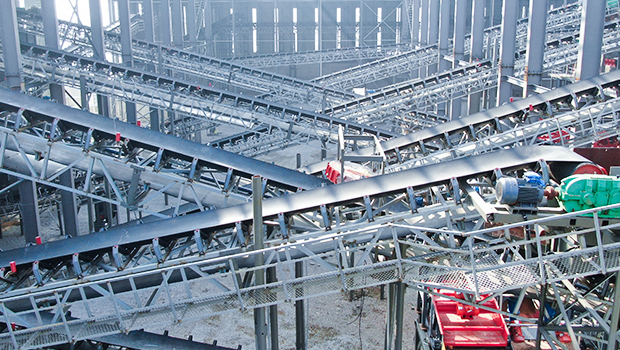

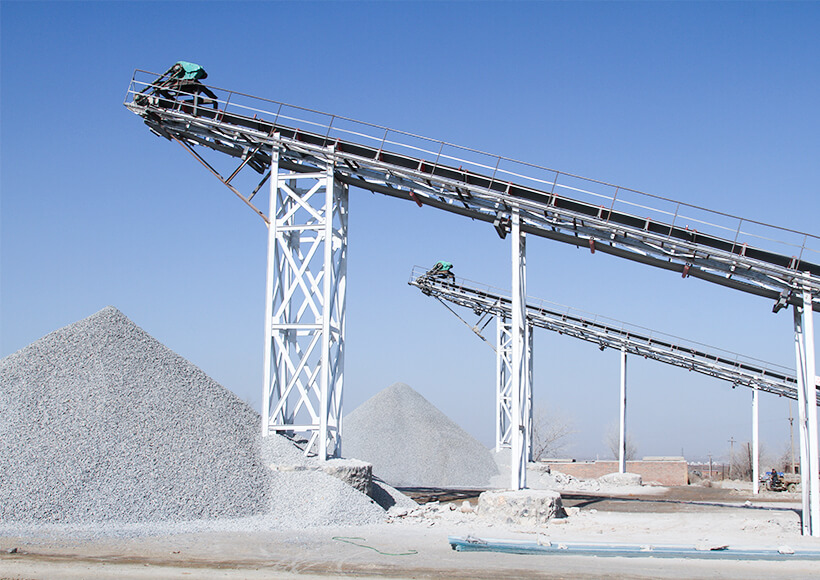

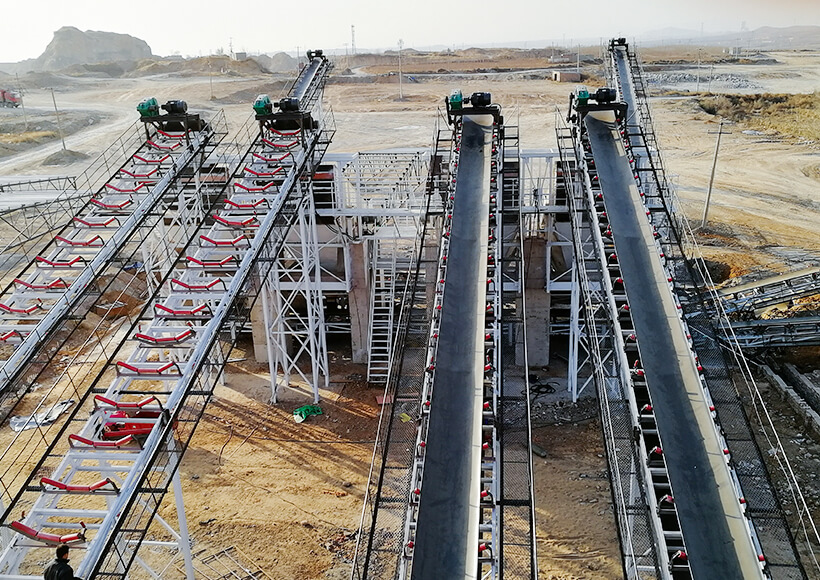

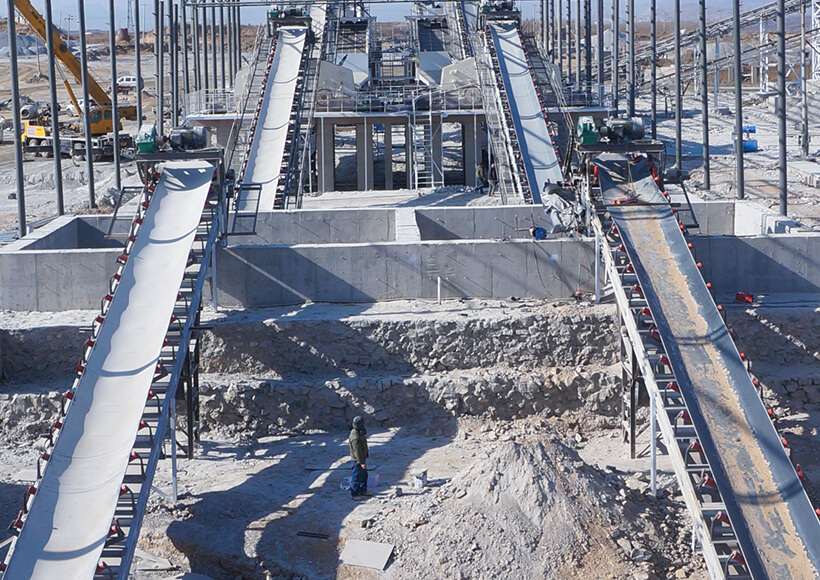

TD series belt conveyor is a kind of general conveying equipment, which is composed of single or multiple units to synthesize the conveying system. It is widely used in mining, metallurgy, coal and other departments to convey loose materials or finished articles. Applicable ambient temperature is - 10 ℃ to+40 ℃.
Strong transportation capacity, long transportation distance, stable operation, reliable work, high productivity, easy to realize automation and centralized control;
The conveying range is wide. It can continuously convey wet, dry, powdery, blocky and finished articles, and can receive or discharge materials to multiple points;
Simple structure, easy maintenance, strong interchangeability and versatility of main parts.

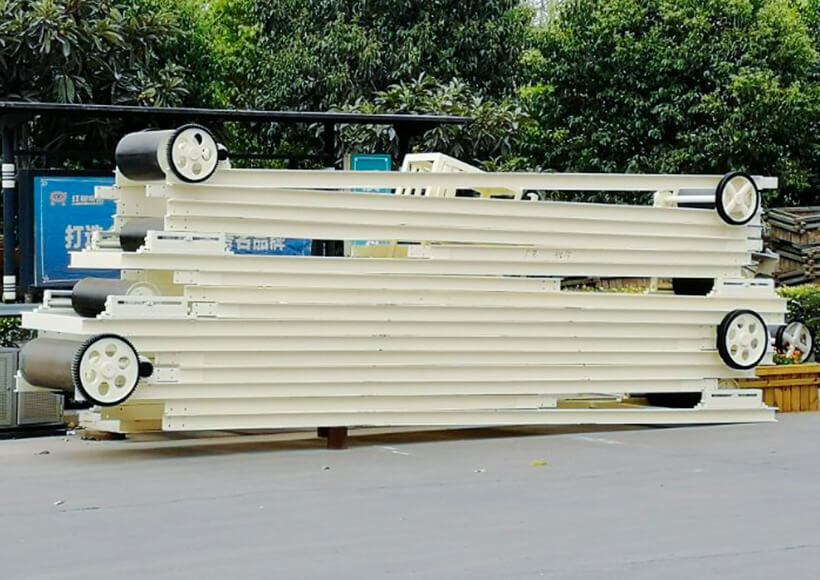

TD Series Belt Conveyor
READ MORE| Belt width (mm) |
Conveying length(m) Power(kw) |
Conveying speed (m/s) |
Conveying capacity (t/h) |
||
| 400 | ≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 11 |
10-20 15-22 |
20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 15 |
10-20 22-30 |
20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 18.5 |
10-20 30-45 |
20-50 45-110 |
1.0-2.0 | 800-1500 |
| 2000 | ≤10 22 |
10-20 45-55 |
20-50 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 30 |
10-20 55-75 |
20-50 75-185 |
1.0-2.0 | 1500-3000 |
