Shaking Table is also called Shaking Concentrator or Table Concentrator, which is a mine selecting machine for fine materials and it works by gravity
Applied material:
tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, titanium, manganese, iron ore, coal, etc
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee

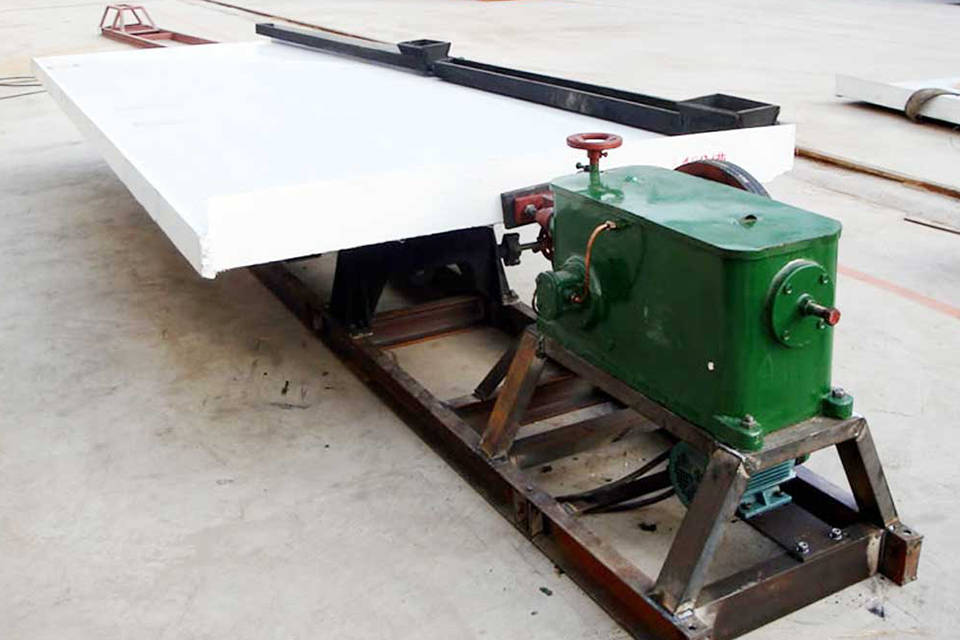

Shaking Table is also called Shaking Concentrator or Table Concentrator, which is a mine selecting machine for fine materials and it works by gravity. It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. The shaking table comprises eight parts, including the bed head, motor, slope regulator, bed surface, mine tank, water tank, rifling bar and lubrication system. The longitudinal reciprocating motion of the bed surface is realized through the crank-link transmission mechanism.
FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
1. The maximum beneficiation concentration ratio can attain more than 300 times;
2. Final concentrate and discarded tailing can be obtained through one time separation;
3. Multiple products can be gained at one time according to your needs;

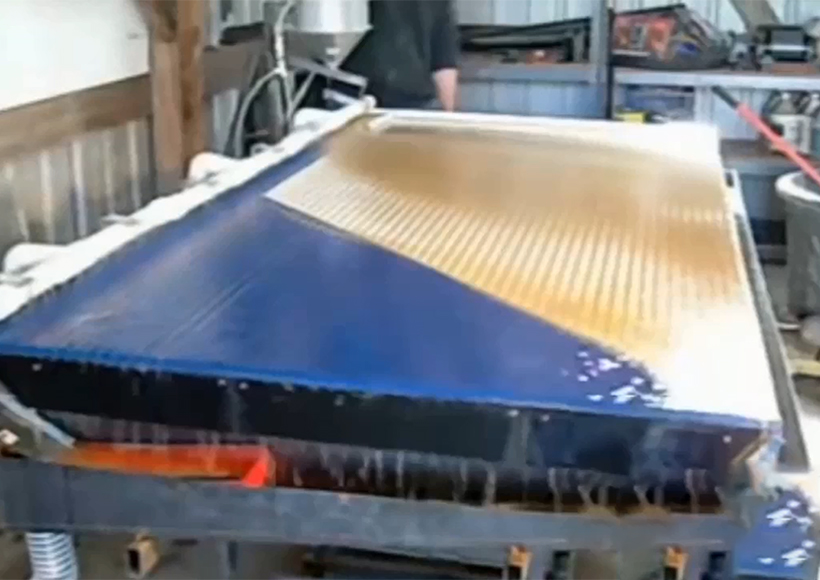

4. Obvious mineral zoning in the table surface contributes to the convenient adjustment, observation and receive.
We provide you with different shaking table solutions to save your costs according to your materials size and capacity. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you. You are welcome to inquireby chatting with online service or leave your whatsapp/ email on our website. We will contact you within 24hours after receiving your inquiry.

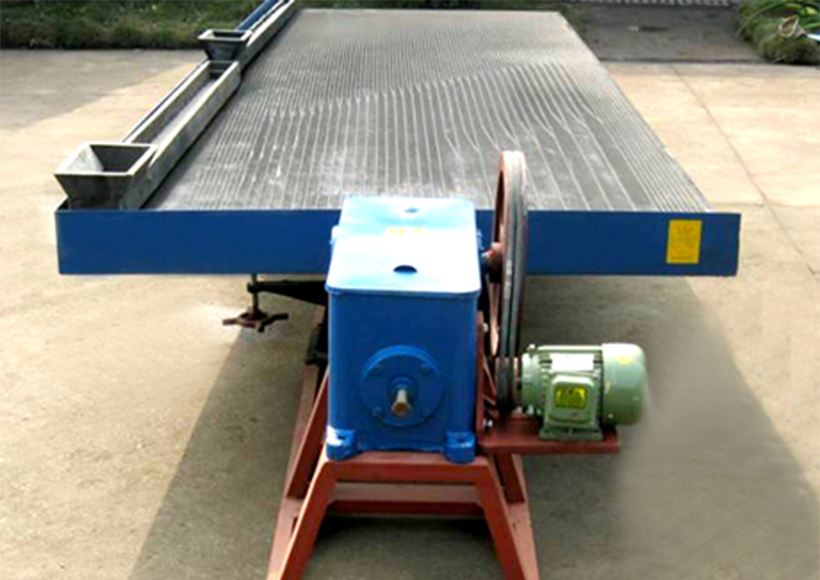

6-S Gold Shaking table, sometimes also known as wet tables, consist of a vibrating riffled deck mounted on some type of support. A motor, usually mounted separately off to the side, drives a small arm that shakes the table along its length. The riffles are usually not more than half an inch high and cover only about half the table surface. Varied riffle designs are available for specific types of applications. Shaking tables are very efficient in recovering heavy minerals from minus 100 microns (150 mesh) down to 5 microns in size.
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length (mm) |
4450 | 4450 | 4450 |
| Driving part Width (mm) |
1855 | 1855 | 1855 | |
| Concentrate part Width (mm) |
1546 | 1546 | 1546 | |
| Max.feeding size(mm) |
2 | 0.5 | 0.15 | |
| Feeding amount (t/d) |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke (mm) |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity (t/d) |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area(㎡) |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
