SC series cone crusher is developed on the basis of absorbing the world's most advanced technology and integrating the company's many years of design experience.
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee
A single-cylinder cone crusher, also known as a single-cylinder hydraulic cone crusher, is a high-efficiency rock crushing machine commonly used in ore crushing, aggregate production, and construction waste recycling.
"It is mainly used for secondary and tertiary crushing and can sometimes be applied to quaternary crushing stages. This crusher is especially effective for breaking medium to hard rocks, stones, and minerals. A single-cylinder cone crusher is widely used for crushing metallic and non-metallic ores such as iron ore, copper ore, and quartz. It is also suitable for aggregates like granite and basalt, as well as construction waste like concrete and asphalt."
"However, it is not suitable for soft, wet, or sticky materials (e.g., clay or shale), as these can clog the machine and reduce efficiency. The cone crusher manufactured by FTM Machinery offers a high output range from 25 to 2181 tons per hour, with a discharge size ranging from 4 mm to 41 mm. This flexibility makes it suitable for various medium and fine crushing needs. Below is the model specification for the medium and fine crushing series."
For more information about additional models or to request free customization, feel free to contact our sales team. We are always ready to assist you!

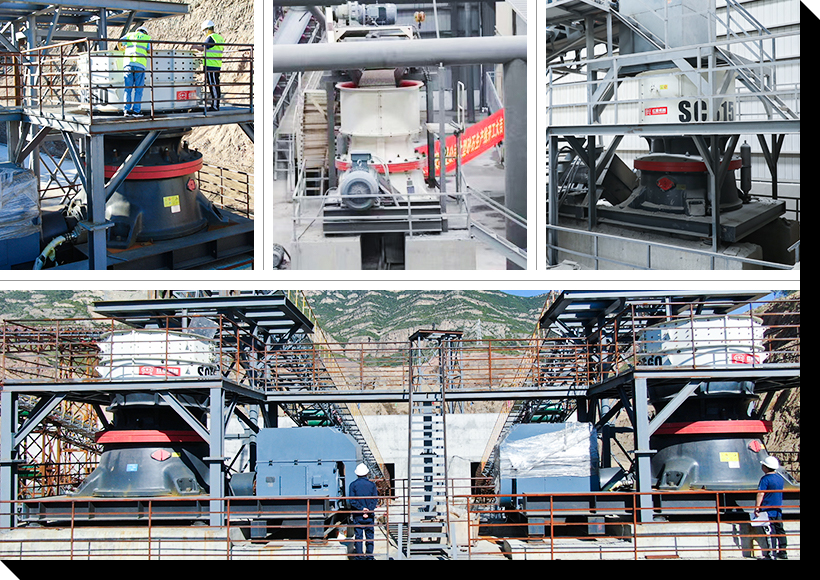

"This cone crusher has been outstanding and has run smoothly for two years. It handles high-hardness granite efficiently with very little maintenance, which has greatly reduced our operating costs. This equipment has made a significant difference in boosting our business!"
As an experienced cone crusher manufacturer, FTM Machinery's single-cylinder cone crusher is widely trusted by customers in mining, recycling, and construction industries for its excellent performance, smart automation, low downtime, easy maintenance, and reasonable price.
Combines advanced chamber design and high crushing frequency, reaching up to 2181 tons per hour.
Uses intergranular lamination crushing to produce cubic-shaped final products with fewer needle-like particles.
Components are easily removed from the top. Filler-free liners save replacement time and costs.
Equipped with hydraulic and lubrication systems for dual protection, it handles overloads automatically and ensures continuous operation, reducing downtime.
Positive pressure system blocks dust and debris, keeping parts clean and extending service life.
Features an intuitive interface for quick discharge adjustment and precise size control. Automation boosts productivity by 15%-25%, simplifying complex operations."

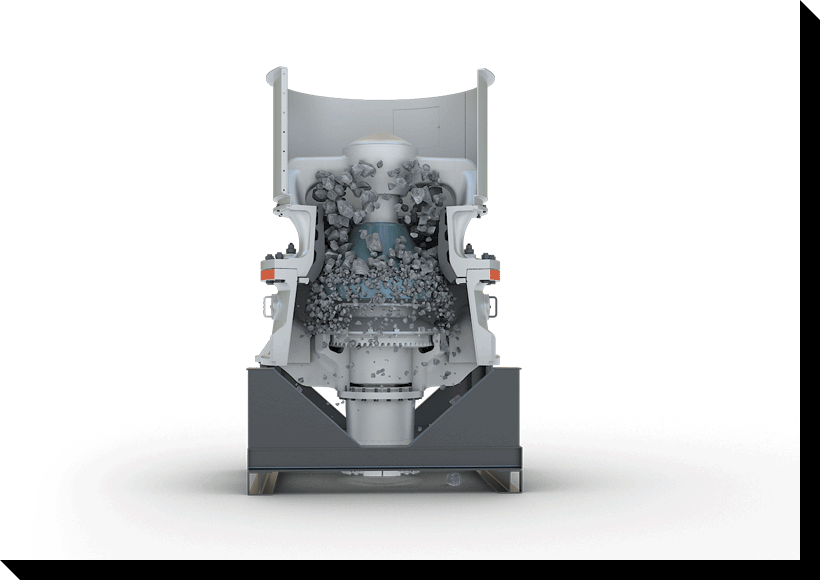

The single-cylinder hydraulic cone crusher is an ideal choice for crushing medium to hard materials, thanks to its efficient performance and smart hydraulic system. During operation, the motor drives the eccentric bushing to rotate, causing the crushing cone to move in an eccentric motion. Materials are repeatedly compressed and bent between the crushing cone and the bowl liner until they are crushed to the desired size and discharged.
The advanced hydraulic system allows precise adjustment of the discharge opening and provides overload protection, ensuring safe and reliable operation.
SC Single Cylinder Cone Crusher Medium Crushing Series
| Model | Cavities | Feeding Size （mm） | Maximum Feeding Size （mm） | Minimum Discharging Size （mm） | Power （kw） | Capacity（t/h） |
| SC100S | C1 | 240 | 175 | 22 | 90 | 85-170 |
| C2 | 200 | 160 | 19 | 70-130 | ||
| SC160S | C1 | 360 | 290 | 25 | 160 | 125-345 |
| C2 | 300 | 240 | 22 | 108-305 | ||

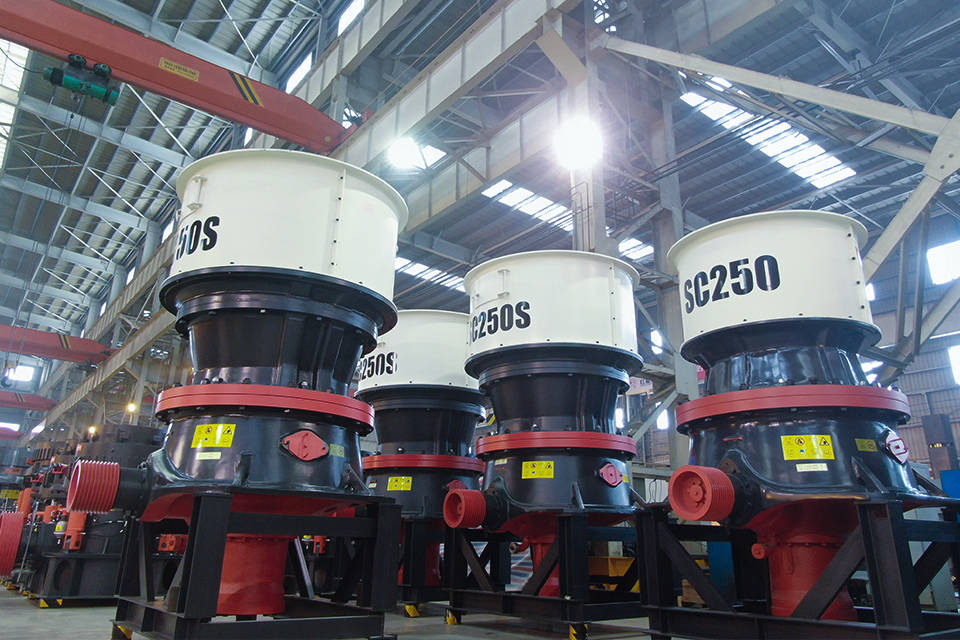

| SC250S | C1 | 450 | 360 | 35 | 250 | 265-524 |
| C2 | 400 | 320 | 29 | 225-448 | ||
| SC315S | C1 | 560 | 450 | 41 | 315 | 349-1050 |
| C2 | 500 | 400 | 38 | 318-892 | ||

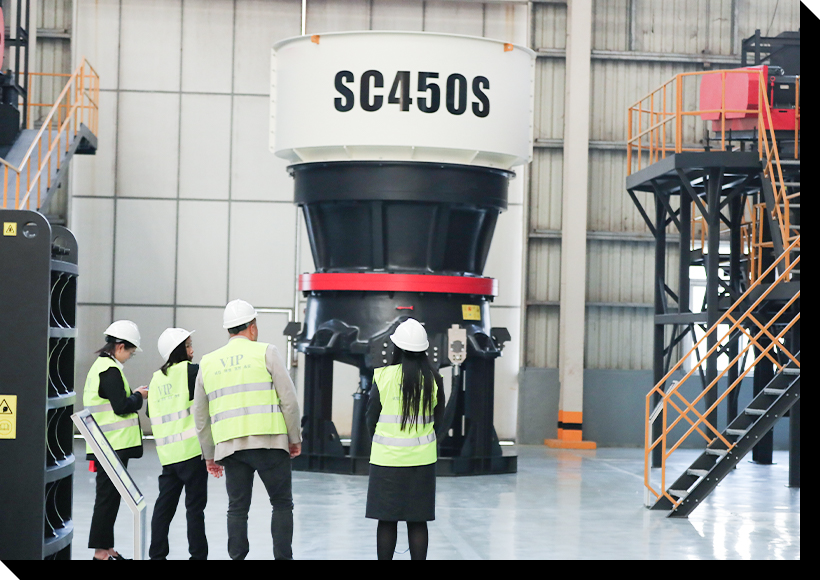

| SC450S | C1 | 600 | 480 | 44 | 450 | 498-1500 |
| C2 | 480 | 385 | 41 | 454-1274 |
SC Single Cylinder Cone Crusher Fine Crushing Series
| Model | Cavities | Feeding Size （mm） | Maximum Feeding Size （mm） | Minimum Discharging Size （mm） | Power （kw） | Capacity（t/h） |
| SC100 | F1 | 150 | 120 | 10 | 90 | 45-135 |
| F2 | 90 | 70 | 10 | 43-118 | ||
| F3 | 50 | 40 | 6 | 25-40 | ||
| SC160 | F1 | 200 | 160 | 13 | 160 | 69-215 |
| F2 | 115 | 90 | 10 | 57-184 | ||
| F3 | 75 | 60 | 8 | 70-90 | ||

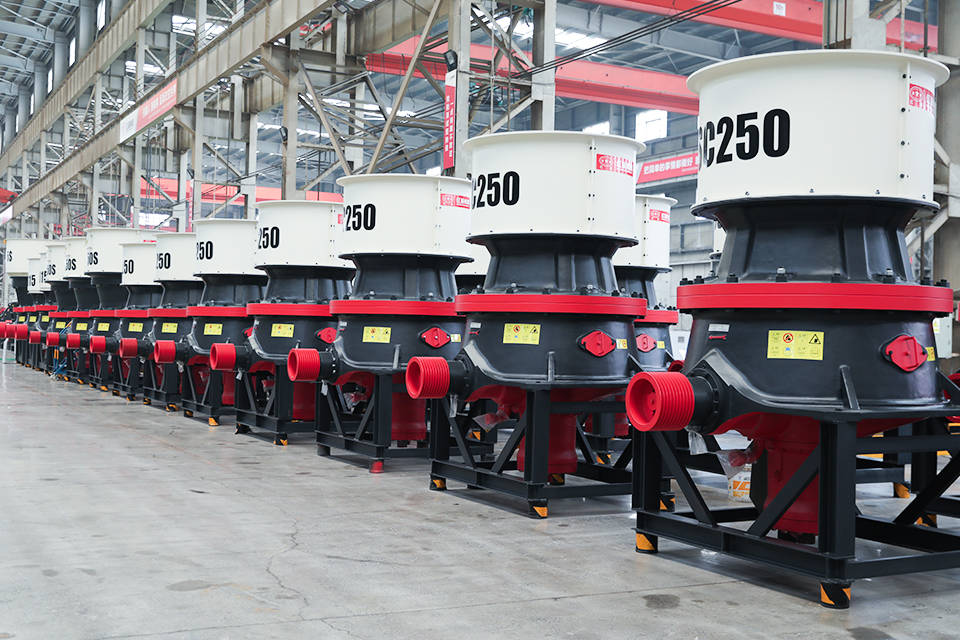

| SC250 | F1 | 240 | 190 | 16 | 250 | 116-396 |
| F2 | 140 | 110 | 13 | 97-346 | ||
| F3 | 70 | 55 | 9 | 90-251 | ||

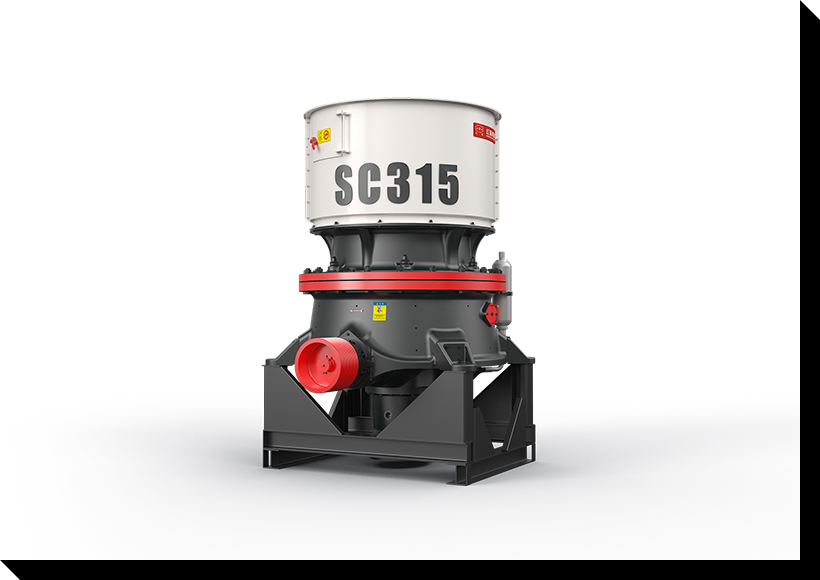

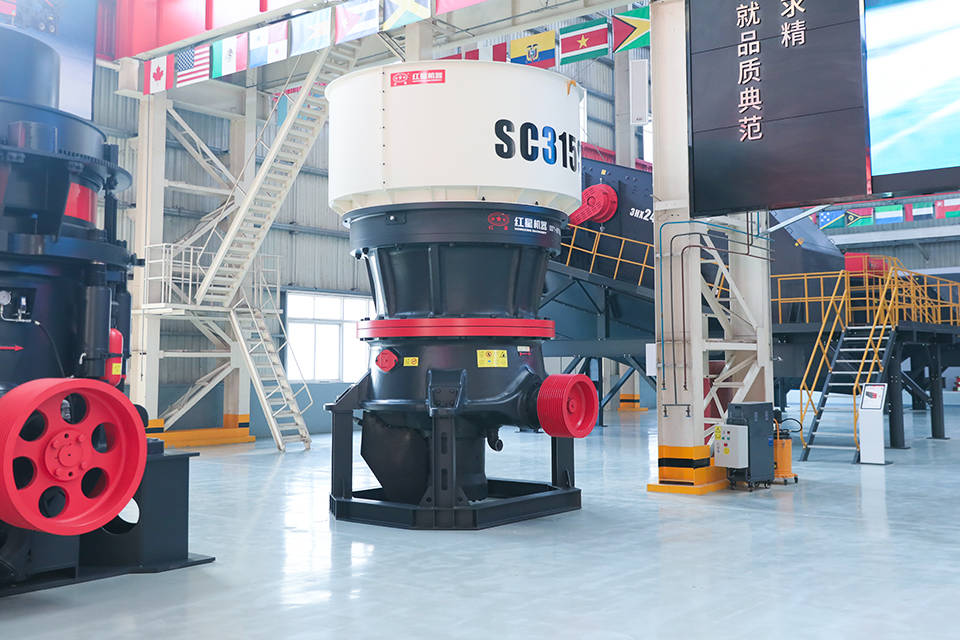

| SC315 | F1 | 275 | 220 | 32 | 315 | 177-662 |
| F2 | 215 | 170 | 29 | 209-643 | ||
| F3 | 175 | 140 | 29 | 162-552 | ||
| F4 | 85 | 70 | 19 | 175-325 | ||

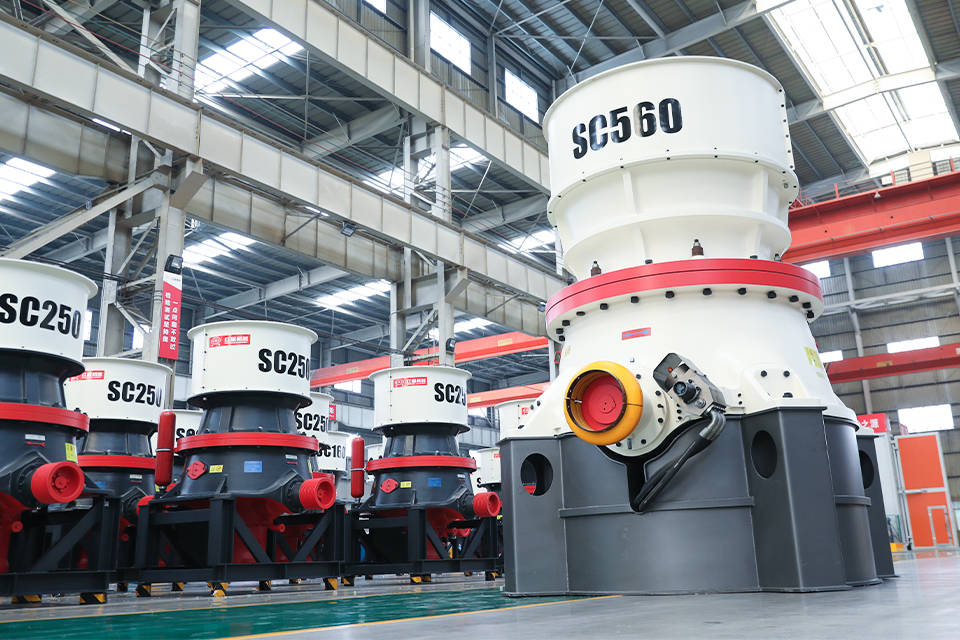

| SC560 | F1 | 300 | 240 | 22 | 560 | 448-1512 |
| F2 | 195 | 155 | 19 | 380-1373 | ||
| F3 | 90 | 70 | 13 | 357-912 | ||
| SC750 | F1 | 370 | 295 | 25 | 750 | 394-2181 |
| F2 | 300 | 240 | 19 | 342-2020 | ||
| F3 | 230 | 185 | 16 | 267-1814 | ||
| F4 | 120 | 95 | 13 | 248-1165 | ||
| F5 | 85 | 70 | 10 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
