Sand Making Machine

A sand making machine, also known as a vertical shaft impact crusher, is a type of equipment used to crush or shape rocks into sand particles. Its main purpose is to produce well-shaped sand products that can be used as a substitute for natural sand.

  • Max Feed Size:35 mm
  • Power:2P 37–55 kW
Leave Message Chat Online
inquiry@sinoftm.com

Applied Material:

Rock, aggregate, river pebble, granite, limestone, basalt, glass, quartz, cobble, dolomite, calcite, diabase, andesite, sandstone, asphalt concrete, construction wastes, road materials, ore tailings, etc.

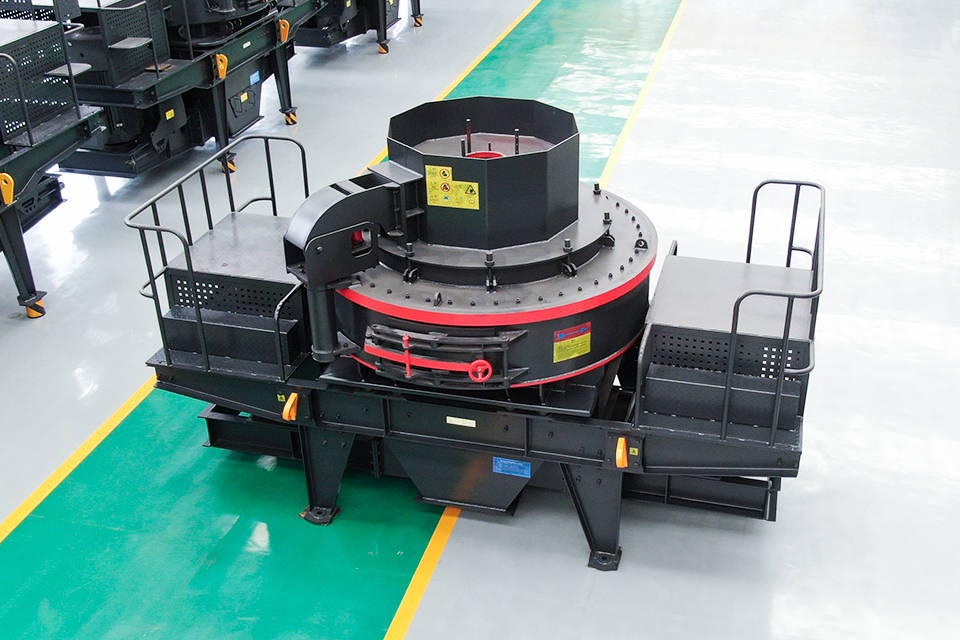

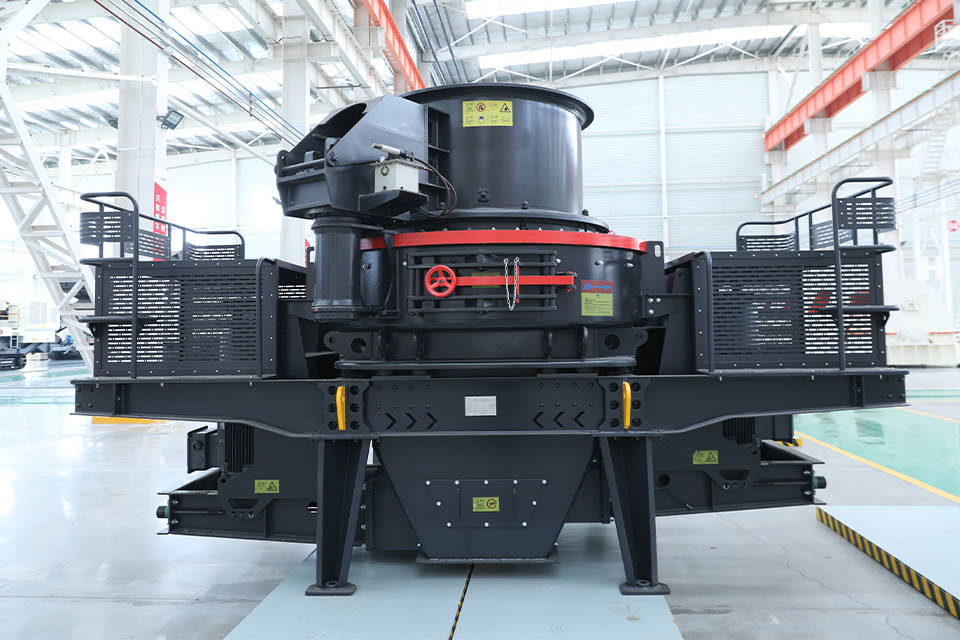

Sand Making Machine
Sand Making Machine
Sand Making Machine
Sand Making Machine
  1. Introduce
  2. Customer Case
  3. Popular Models
  4. Why Choose FTM
  5. Working Principle

What is a sand making machine?

A sand making machine, also known as a vertical shaft impact crusher, is a type of equipment used to crush or shape rocks into sand particles. Its main purpose is to produce well-shaped sand products that can be used as a substitute for natural sand.

FTM Machinery sand maker has been upgraded many times to achieve green sand making. It provides high-quality sand and gravel aggregates for high-rise buildings, highways and railways, municipal engineering, water conservancy facilities, concrete mixing stations, and manufacturing industries.

Successful case of FTM Machinery sand making machine

As a professional sand maker supplier, FTM Machinery has its production workshop and R&D organization. You can get the following services for free:

Provide users with free guidance on the selection of sand makers.

Design economical sand production line solutions according to your needs.

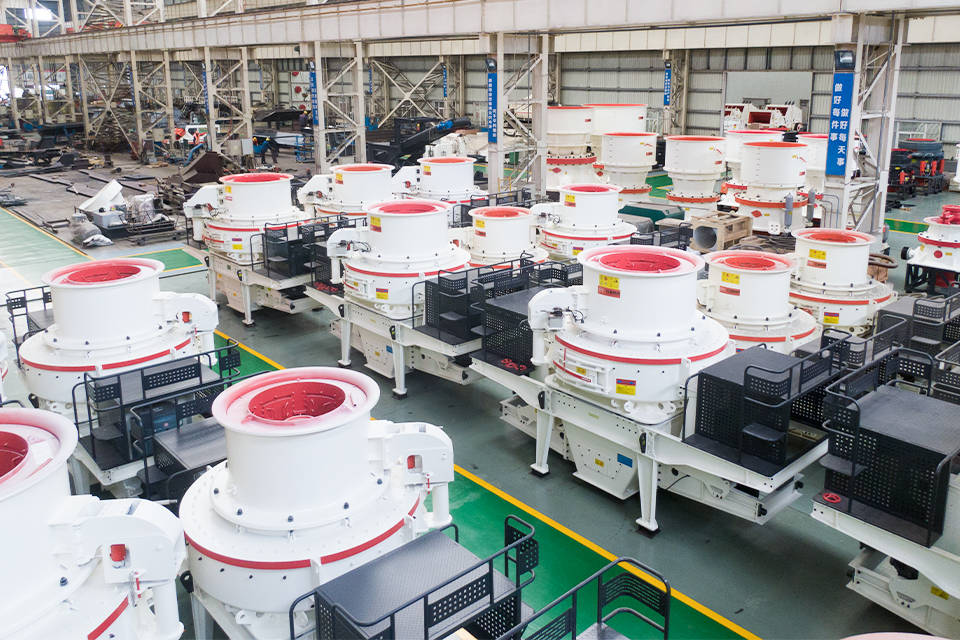

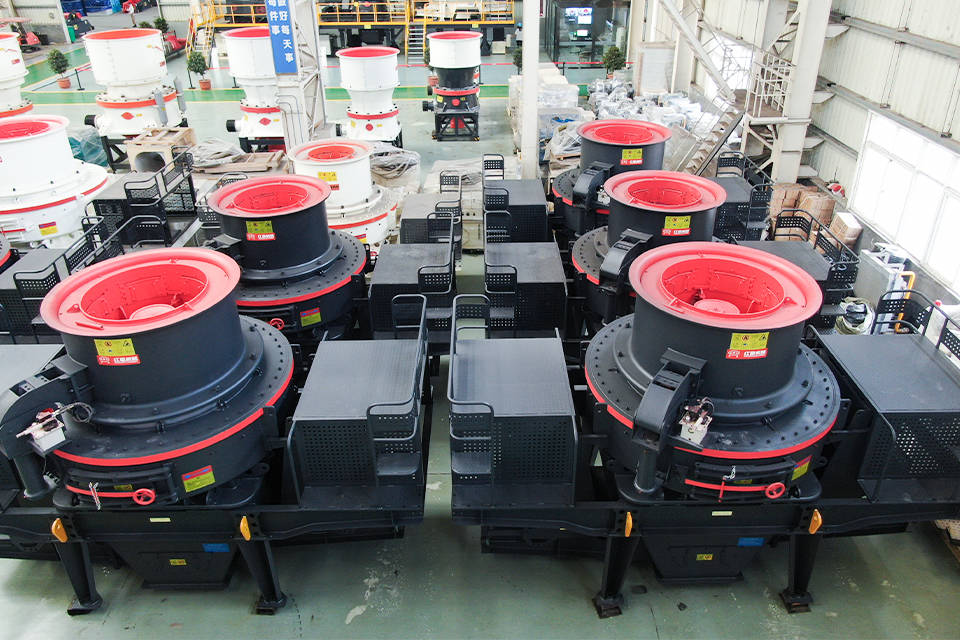

Come to the factory and visit the production workshop and working site.

Enjoy the free test of the sand making machine with your material.

Dispatch engineers to your working site to guide the installation and train the operators.

Hot types of sand making machines

Based on the introduction of German technology, FTM Machinery has developed 3 types of high-performance sand making equipment: VSI sand maker, HVI sand maker, and mobile sand maker.

1. VSI series sand making machine

VSI sand making machine is a common gravel-making machine in the market. VSI sand maker has a deep cavity rotor design with a large passing capacity. Compared with traditional sand making machines, it can save energy by 50%, and the sand-forming rate is 20% higher.

  • Maximum feed size: Hard material <45 mm, soft material <50 mm
  • Capacity (feed at center): 40–365 t/h
  • Capacity (feed at center and sides): 80–650 t/h
  • Motor power: 4P 500 kW

2. HVI series sand making machine

HVI sand making machine is the latest equipment with two functions of sand making and shaping. The finished product is uniform, with a beautiful size and better grain shape. It adopts the best design of the material impact angle of the crushing chamber.

  • Maximum feed size: Hard material <50 mm, soft material <55 mm
  • Sand shaping capacity: 50–498 t/h
  • Sand making capacity: 90–585 t/h
  • Motor power: 2×315 kW

3. Mobile sand making machine

Both HVI and VSI sand making machines can be equipped with mobile crushing stations. The mobile sand making machine can be driven to the site to start sand making and screening work directly. It not only effectively improves work efficiency, but also facilitates user operation.

  • Production capacity: 40-650 t/h
  • Equipped with machines: Feeder, sand making machine, vibrating screen, conveyor, etc.

It can be composed of tire-type and crawler-type sand making machines to meet the needs of various coarse, medium, and fine sand production plants.

Why choose FTM Machinery sand making machines?

FTM Machinery sand making equipment can offer numerous advantages for your various applications:

  • With the optimized design of the deep cavity rotor, the material throughput is increased by about 30%.

  • The new impeller design of the sand making machine optimizes material flow and the output is as high as 650 t/h.

  • The machine has the functions of fine crushing and coarse grinding. The product is in the form of a cube, with good particle size and extremely low flake content.

  • The crushing structure of "rock on rock" and "rock on iron" can be selected, with high crushing efficiency.

  • Sand maker is green and environmentally friendly. The airflow in the vortex chamber is automatically circulated, and it is equipped with a dust-proof device.

  • Thin-oil lubrication system and automatic maintenance. Under the same capacity, power consumption can be reduced by 10%–40%.

  • Protecting plates can be turned around after partial wear to extend their service life. Only the worn parts need to be replaced, which can reduce the use cost by 30%.

FTM Machinery Sand Making Machine for sale: Get the Latest Price

How does a sand making machine work?

The sand making machine uses the working principle of high-speed impact and crushing:

1. First the material flows into the vortex crushing cavity from the feed hopper. The high-speed rotating impeller crushes the material scattered around the impeller in the form of an umbrella.

2. After the materials collide with each other, the material layer between the impeller and the casing will form a vortex flow for multiple collisions, friction, and crushing.

3. Then the material is discharged from the lower discharge hopper to complete the crushing process. The particle size of the finished product is controlled by the screening machine.
