Rotary Kiln

The cement kiln is mainly used for calcining of cement clinker. There are dry and wet types. The metallurgy industry and ironworks for lean iron ore, chromium ore, and ferronickel ore calcimine

Leave Message Chat Online
inquiry@sinoftm.com

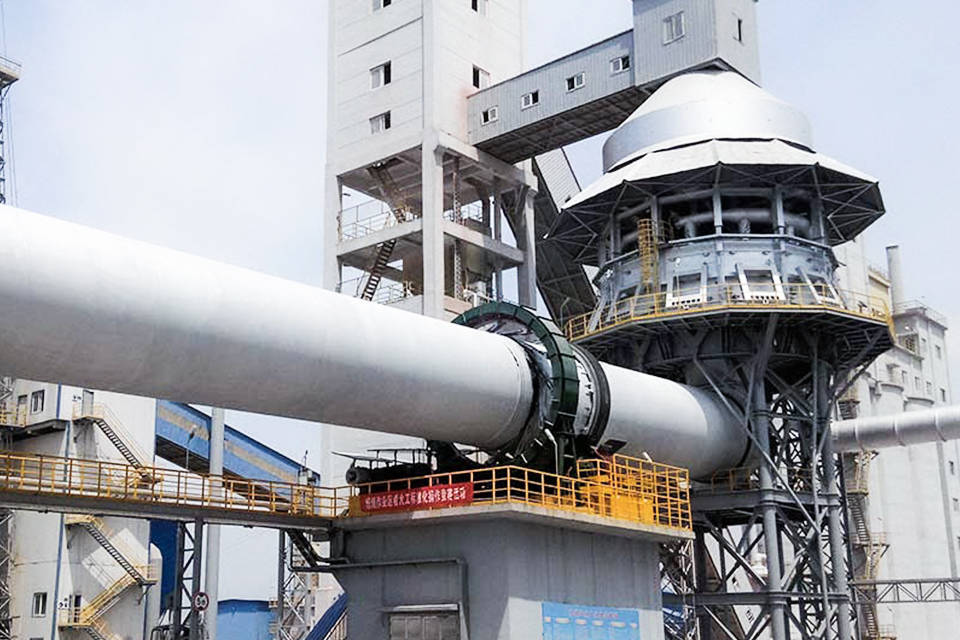

Rotary Kiln

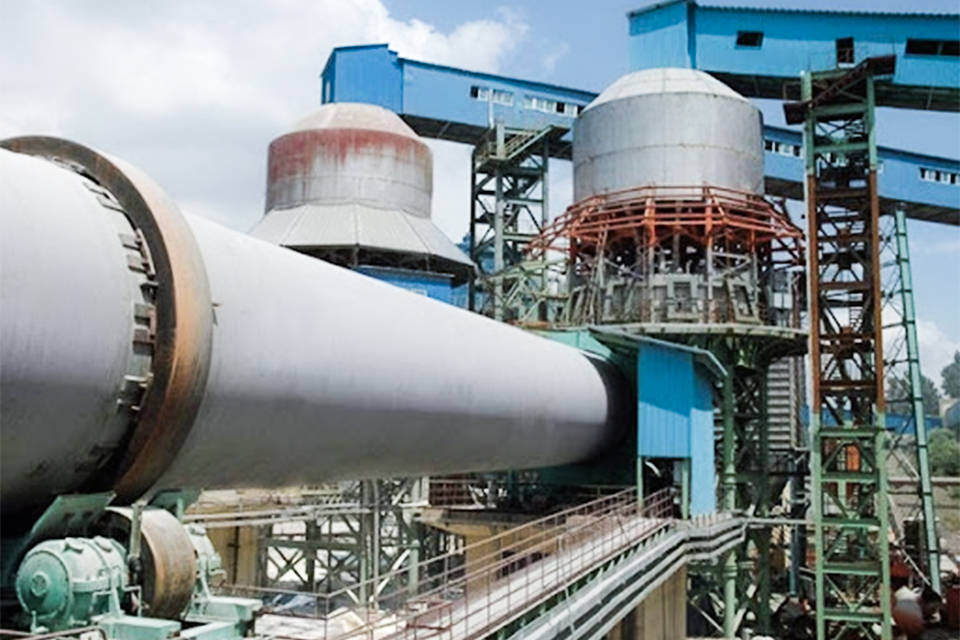

Rotary Kiln

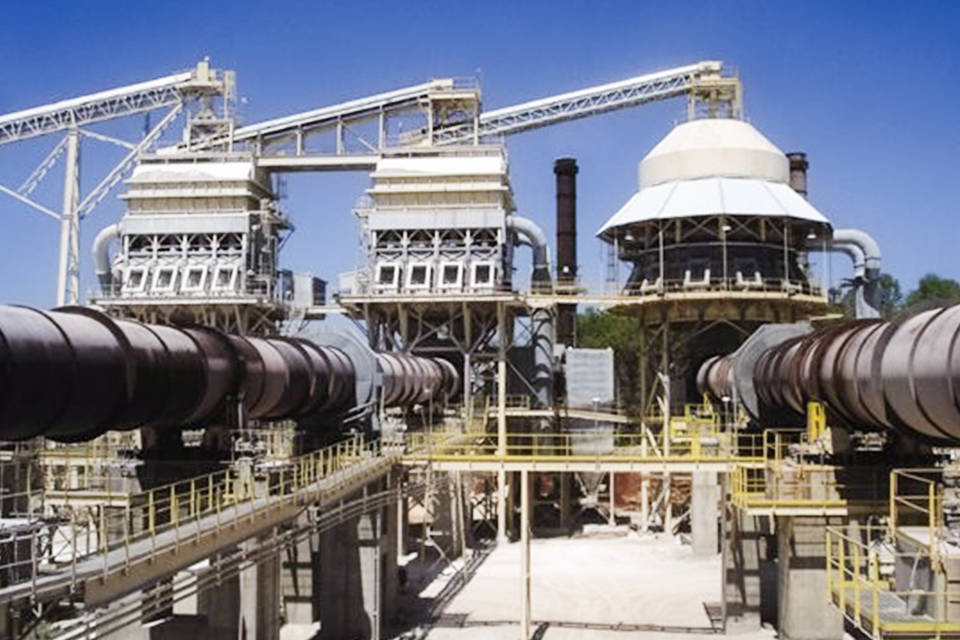

Rotary Kiln

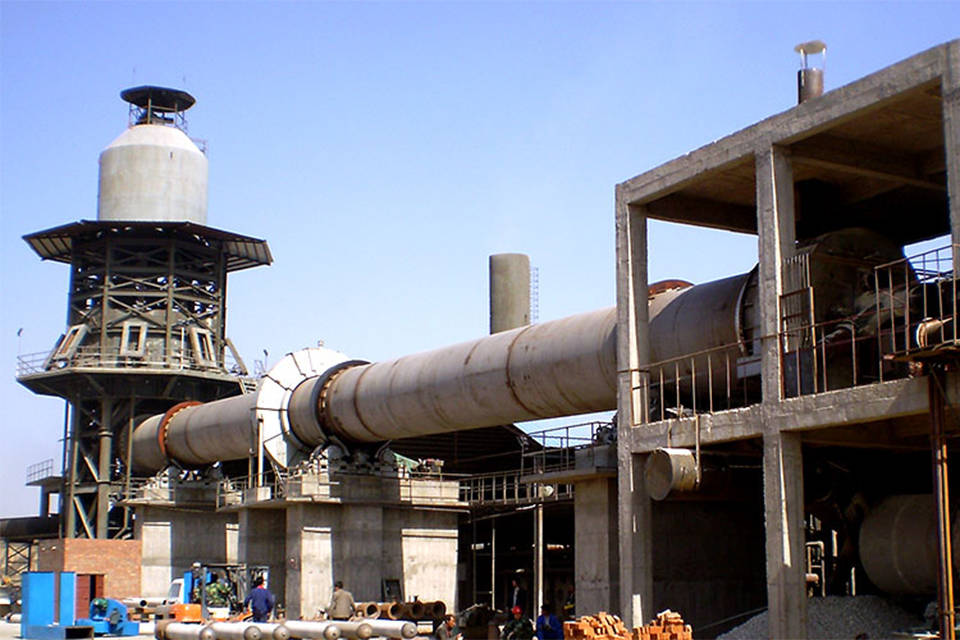

Rotary Kiln
  1. Introduce
  2. Customer Case
  3. Why Choose FTM
  4. Working Principle
  5. Technical Specifications

Brief Introduction

The cement kiln is mainly used for calcining of cement clinker. There are dry and wet types. The metallurgy industry and ironworks for lean iron ore, chromium ore, and ferronickel ore calcimine. Rotary kiln is used for calcimine of high aluminum vandal ochre in the refractory material industry: calcimine of calotte and aluminum hydroxide in aluminum manufacturer, claiming of chrome sand ore and chrome powder ore in a chemical plant. The lime kiln (active lime kiln) is used for roasting the active lime which is used in steel works and ferroalloy works, and calcined dolomite.

Cases and Price

Our Rotary Kiln has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.

Advantages

  • The axial movement of the cylinder is controllable

    The cylinder of the rotary kiln is made of high-quality killed steel plate, and the customer can flexibly control the axial movement of the cylinder.

  • Flexible speed

    The transmission rotates the cylinder at a required rotational speed through a ring gear provided in the middle of the cylinder.

  • Easy installation and maintenance

    The larger rotary kiln is equipped with an auxiliary transmission that rotates the cylinder at a very low speed to meet installation and maintenance needs.

  • Good sealing performance

    In order to prevent cold air from entering and flue gas dust from overflowing the cylinder, reliable kiln tail and kiln head sealing devices are provided at the feeding end and the discharging end of the cylinder.

FTM Machinery Rotary Kiln for sale: Get the Latest Price

Working Principle

The rotary kiln is a cylindrical body with a certain inclination, and the inclination is 3% to 3.5%. The rotation of the kiln is used to promote the mixing of the material in the rotary kiln, and the materials are mixed and contacted for the reaction. The kiln head coal combustion produces a large amount of heat, and the heat is transmitted to the material by means of flame radiation, convection of hot gas, and kiln brick. The material moves forward in the kiln depending on the inclination of the kiln cylinder and the rotation of the kiln.

Technical Specifications

view
Product
Specification
(m)
Kiln dimensions Motor
power
(kw)
Total
weight
(t)
note
Diameter
(m)
Length
(m)
Obliquity
(%)
Capacity
(t/d)
Rotation
speed
(r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61

-----

Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 -----
Φ2.5×54 2.5 54 3.5 280 0.48-1.45 55 196.29

outside

disassemble

kiln

Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ------
Φ2.8×44 2.8 44 3.5 450 0.437-2.18 55 201.58

outside

disassemble

kiln

Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ------
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237

outside

disassemble

klin

Φ3.0×60 3 60 3.5 800 0.3-2 100 310 ------
Φ3.2×50 3.5 50 4 1000 0.6-3 125 278

disassemble

klin

Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283

kiln with

preheater

precalcine

Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363

kiln with

prehrater

precalcine

Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419

Generating

klin for

usimg ofterheat

Φ4.0×56 4 56 4 2300 0.41-4.07 315 456

klin with

prehrater

precalcine

Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510

klin with

prehrater

precalcine

Φ4.2×60 4.2 60 4 2750 0.41-4.07 375 633

klin with

prehrater

precalcine

Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583

klin with

prehrater

precalcine

Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4

klin with

prehrater

precalcine

Φ4.7×74 4.7 74 4 4500 0.35-4 630 849

klin with

prehrater

precalcine

Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899

klin with

prehrater

precalcine

Φ5.0×74 5 74 4 6000 0.35-4 710 944

klin with

prehrater

precalcine

Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265

klin with

prehrater

precalcine

Φ6.0×95 6 95 4 10000 Max5 950×2 1659

klin with

prehrater

precalcine
