PCZ type heavy hammer crusher is widely used in many industries such as mining, smelting, building materials, high-way, railway, water conservancy and chemical industry.
Materials:
gypsum, limestone, aggregate, granite, gravel, coal, barite, rock, slag, brick, ore, etc.
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee
Hammer crusher is also called hammer mill, or hammer mill crusher. It is a crusher that uses a series of rotating hammers to crush materials (600–1,800 mm) into smaller pieces (below 25 or 25 mm).
The hammer crusher is very suitable for medium and fine crushing of medium-hard and brittle materials. It is known for providing greater crushing ratios in a variety of materials for the aggregate and industrial markets.
Hammer crushers can be used for dry and wet crushing. This requires that the compressive strength of the materials is less than 200 Mpa and that the water content is not more than 15%.
You can crush glass, limestone, concrete aggregate, coal, gypsum, bauxite, construction waste, cement clinker, slag, coke, phosphate, dolomite, river pebbles, marble, basalt, shale, etc.
Not sure whether your materials can be processed or not? Contact us

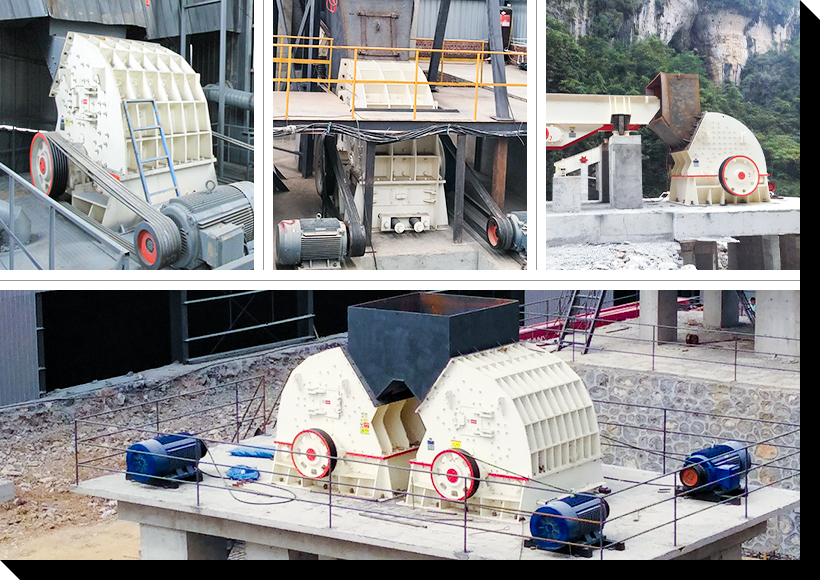

Many of our customers from the U.S., India, the Philippines, and Kazakhstan use hammer crushers as rock and limestone crushers. It has many other uses:
Glass sand plants
Ceramic production plants
Highways and railways
Buildings and municipal engineering
Cement plants that crush and grind limestone, coal, gypsum, shale, and clay
Chemical plants producing various carbonate powders
Drywall manufacturers begin by cooking and milling gypsum
Customer feedback:

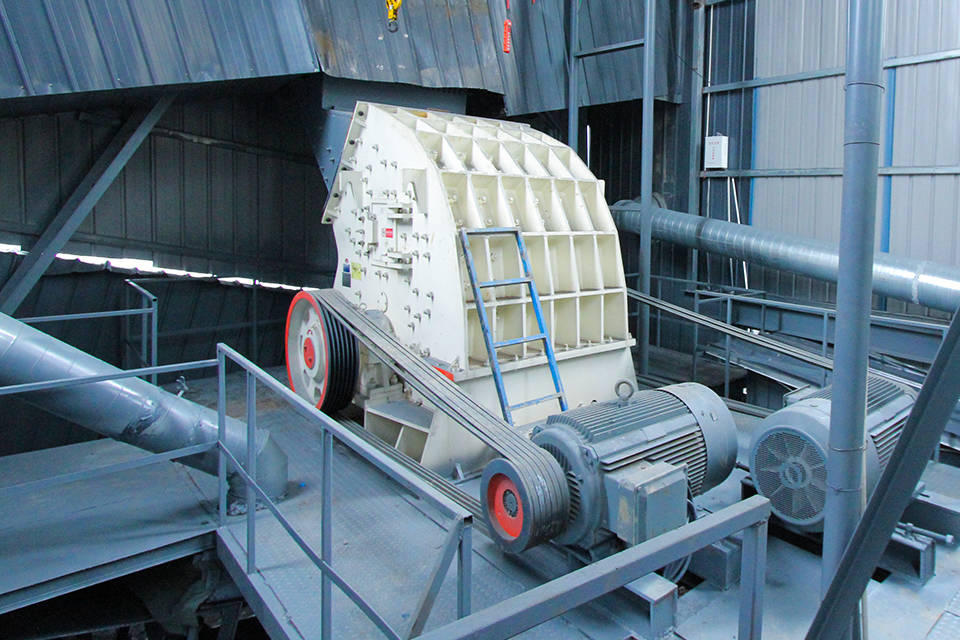

Simple and reasonable production line configuration. The heavy hammer crusher is a one-time forming crusher that can realize the coarse and medium-fine crushing and shaping of quartz stone without sand making machine.
Cost-saving. The quartz stone crushing line is mainly composed of two heavy hammer crushers and auxiliary equipment, which simplifies the process and saves costs.
High-quality finished products. Equipped with heavy hammer crushers, the product has a good grain shape with fewer edges and low powder content, realizing precise processing of quartz.

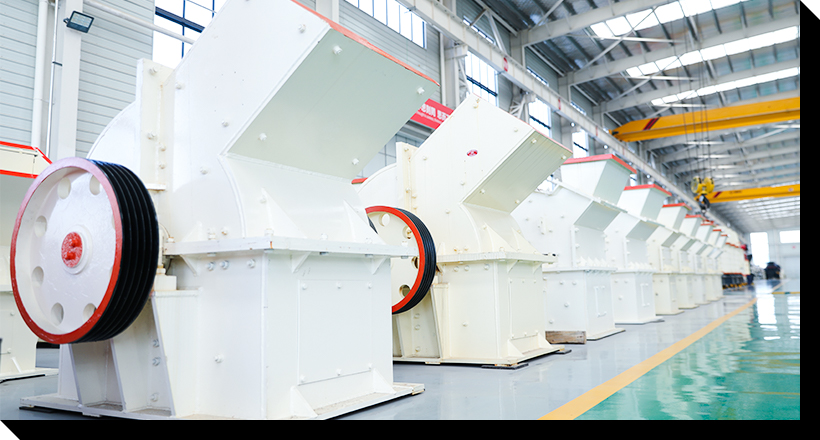

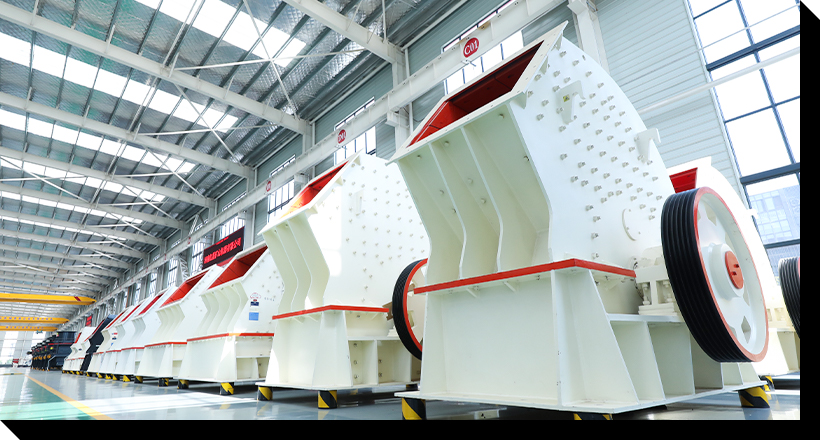

The normal hammer crushers are mainly PC series, used for small-scale production with low cost. The maximum feed size is 300 mm and the maximum capacity is 95 t/h.
PC Hammer Crusher is known for crushing glass, coal, concrete stone, and road rocks.
Hot Sale Models of PC Hammer Crushers:
PCΦ400×300, PCΦ600×400: Small hammer mills with small power consumption and low cost.
PCΦ1000×800, PCΦ1000×1000: Hammer mills with a large capacity and high efficiency.
Heavy hammer crushers are an upgraded version of the PC Hammer Crushers, providing PCX and PCZ series. They are specially designed for large and medium production lines.

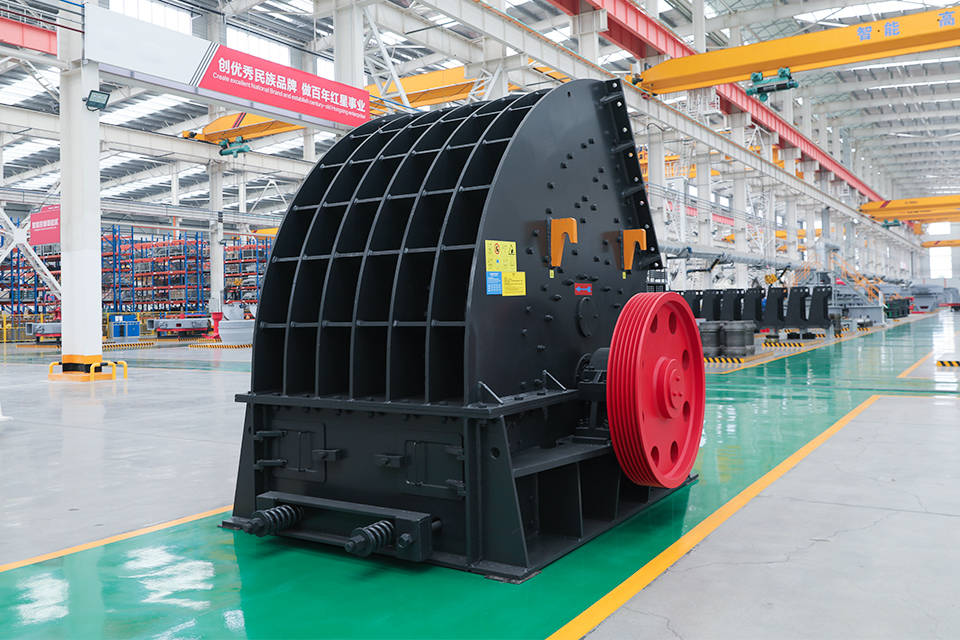

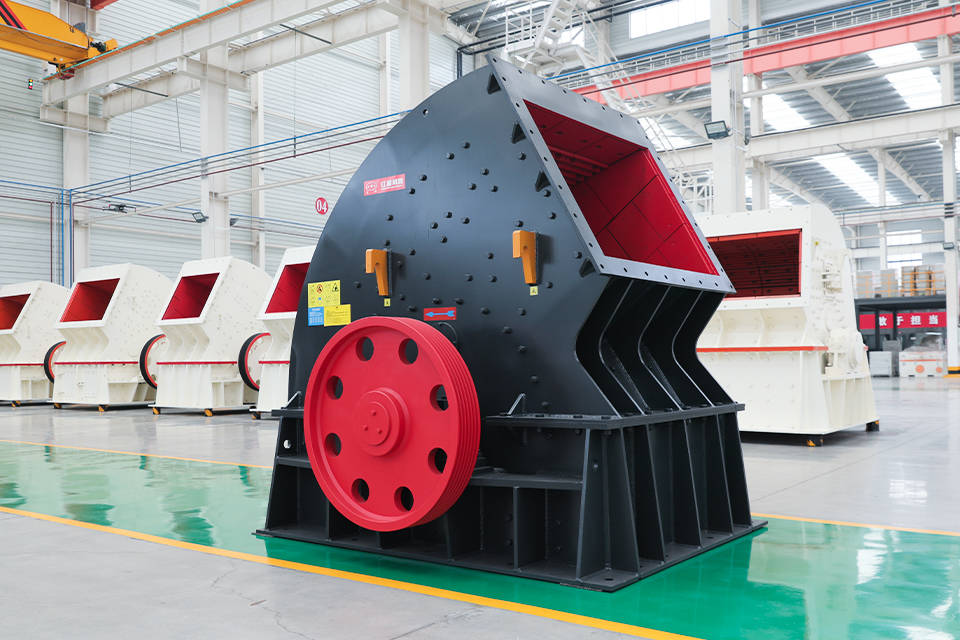

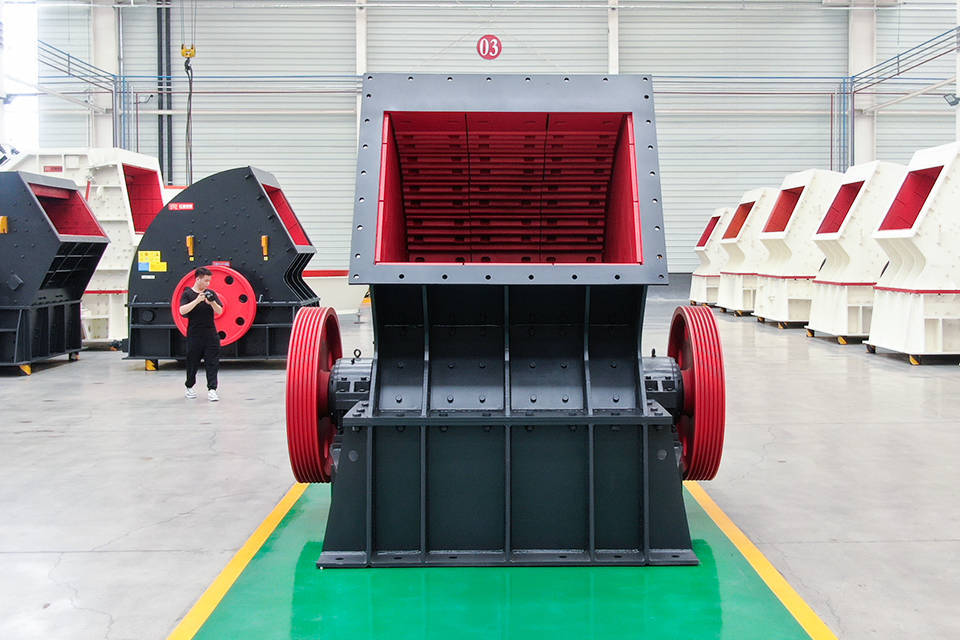

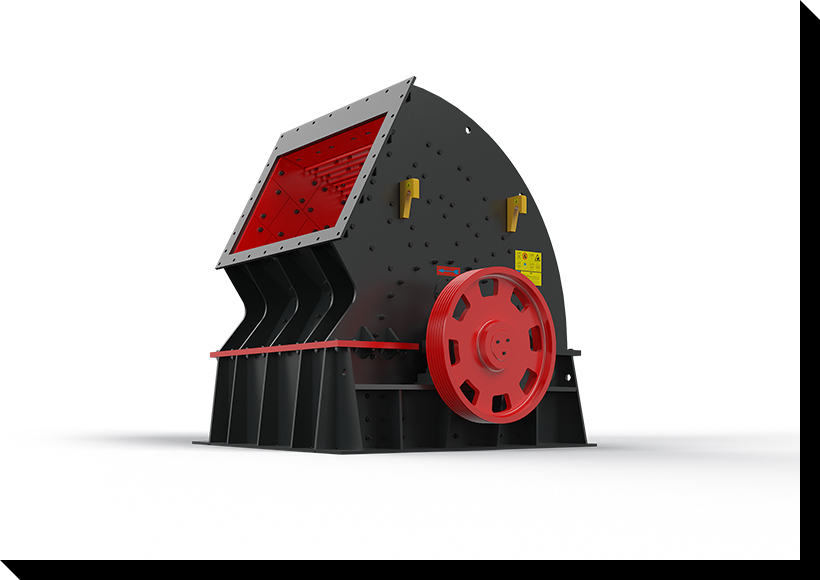

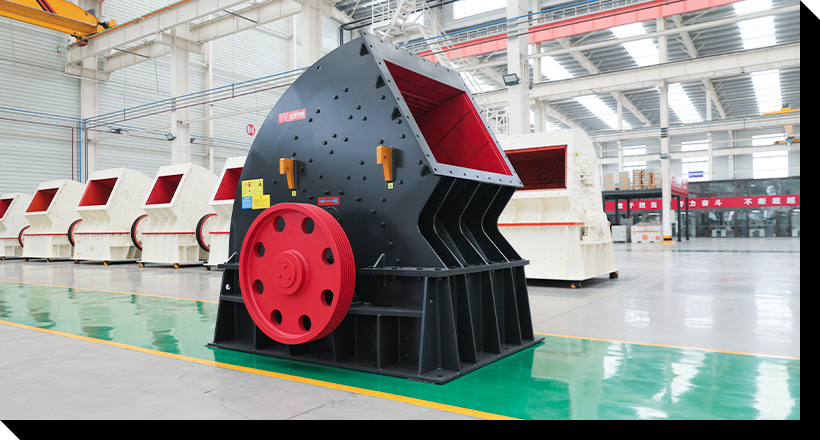

PCZ Heavy Hammer Crusher combines the advantages of the jaw crusher, hammer crusher, and impact crusher. It has a larger input size ((≤1,000 mm) and greater capacity (≤3,000 t/h).
PCX Heavy Hammer Crusher has a smaller feed size (≤300 mm) and smaller capacity（≤1,200 t/h）, but a finer output size (≤40 mm). It is an all-in-one crushing and shaping machine, which is used as a secondary crushing and shaping machine in large-scale production lines.

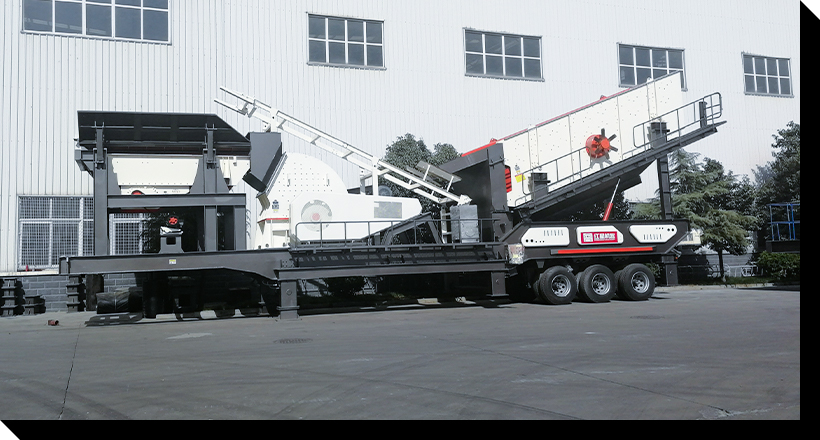

All the hammer mills can be designed as mobile models according to user needs. They can be operated by one person, flexible and convenient.
As a leading hammer mill manufacturer, FTM Machinery has over 40 years of experience and refinement. Engineers have designed three series of hammer mills, which adopt the most advanced technology and scientific design to make your crushing easier.
If you are looking for reliable performance and a solid return on your investment, FTM Machinery hammer mills are the perfect answer for you.
With large feed size, high productivity, and large crushing ratio (generally 10–25, even to 50), it is often used in large-scale and high-yield production lines.
Scientific crushing cavity design and no sieve plate structure can reduce clogging and increase output by 1.4–1.6 times.
It can reduce the cost by about 40% by one-time molding without primary and secondary crushing and shaping processes.
The price is cheap. FTM Machinery's machine price is 10% lower than the market price.
The discharging particle size is small, uniform, and cubic with less over-crushing.
A variety of hammer sizes, models, and grate gaps are available for accurate final product sizes to meet the different needs of different users.
Easy to operate. It can work continuously and reliably, saving energy and electricity. Besides, its wearing parts are easy to repair and replace, and the maintenance cost is low.

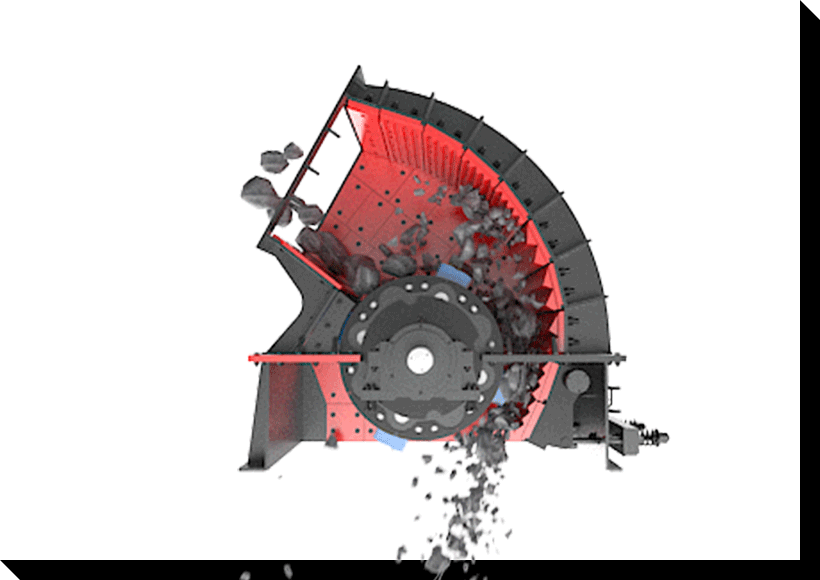

The working principle of the hammer mill is to crush materials by the impact energy of the high-speed rotating hammer head.
When working, the motor drives the rotor to rotate at a high speed, and the materials are evenly sent into the crushing cavity. The high-speed rotating hammer heads impact and crush the minerals. The crushed materials rush to the impact plate and grate bar at high speed. At the same time, the materials impact each other and are crushed many times.
After that, the materials smaller than the size of the grate gap are discharged. The grate gap determines the final product size, any remaining material continues to be crushed until it is discharged.
| Model | Rotor diameter×length (mm) | Feed Opening Length×width(mm) | Feeding Size (mm) | Processing Capacity(t/h) | Power (kw) | Dimensions L×W×H (mm) |
| PCZ1308 | Φ1330×790 | 870×780 | ≤380 | 60-160 | 132 | 2880×2130×2390 |
| PCZ1410 | Φ1400×1000 | 1060×740 | ≤450 | 80-210 | 2×90(160) | 2830×2100×2485 |
| PCZ1610 | Φ1600×1000 | 1090×930 | ≤480 | 100-230 | 2×132 | 3370×2415×2750 |
| PCZ1612 | Φ1600×1200 | 1340×1140 | ≤500 | 120-350 | 2×160 | 3370×2613×2750 |
| PCZ1615 | Φ1600×1500 | 1570×1140 | ≤550 | 200-550 | 2×200 | 3370×2925×2750 |
| PCZ1716 | Φ1700×1600 | 1420×1200 | ≤600 | 400-850 | 2×250 | 3520×3000×3210 |
| PCZ1720 | Φ1700×2000 | 2030×1200 | ≤650 | 500-1000 | 2×400 | 3670×3390×3330 |
| PCZ1920 | Φ1900×2000 | 1980×1210 | ≤750 | 800-1500 | 2×500 | 4490×3910×3600 |
| PCZ2225 | Φ2200×2500 | 2530×1610 | ≤1000 | 1500-3000 | 1250 | 4890×5010×4560 |
Note: Capacity May Vary with Different Materials and Feed Sizes.
