The equipment is suitable for the fine screening of finished products and crushed rocks in the closed-circuit crushing process, dewatering, etc.
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee

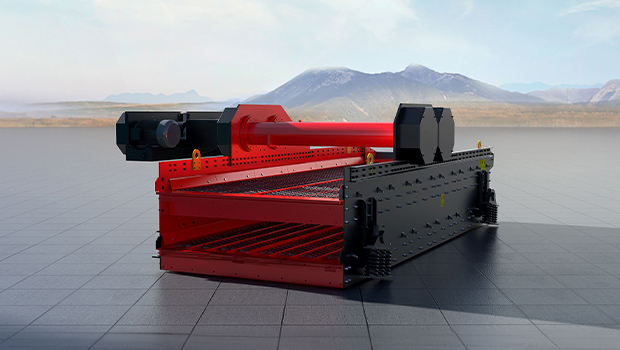

LS series linear screen is designed based on European technology and manufactured in China in strict accordance with European technical standards and process requirements. Its motion trajectory is a straight line or an elliptical shape close to a straight line, which takes into account the high screening efficiency of the linear vibration trajectory and the large processing capacity of the circular vibration trajectory, as well as its approximately horizontal installation method.
FTM Machinery is a high-quality LS Series Linear Screen manufacturer integrating R&D, production, sales, and service. The LS Series Linear Screen machines have the following outstanding advantages:
The linear trajectory produced by the dual- axis vibrator makes the equipment have a higher screening efficiency.
The maximum vibration intensity of 4.5G, the rod is not easy to jam.
Convenient adjustment of vibration parameters, better adapt to different site conditions.
The feed range of 500mm-1500mm is suitable for large impact and high load conditions.
By adjusting the gap between the grate bars and selecting the lower screen, the equipment can have a wide separation granularity level.
| Model | Screen mesh size | Motor power/kw | Rotating speed | Amplitude | Vibration intensity | Installation angle | Separation particle size | Maximum feeding size |
| 2LS1550 | 1500x5000 | 2x11 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 3LS1550 | 1500x5000 | 2x11 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 4LS1550 | 1500x5000 | 2x15 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 2LS1860 | 1800x6000 | 2x11 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 3LS1860 | 1800x6000 | 2x15 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 4LS1860 | 1800x6000 | 2x22 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 2LS2160 | 2100x6000 | 2x11 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 3LS2160 | 2100x6000 | 2x15 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 4LS2160 | 2100x6000 | 2x22 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 2LS2460 | 2400x6000 | 2x15 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 3LS2460 | 2400x6000 | 2x22 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 4LS2460 | 2400x6000 | 2x30 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 2LS2770 | 2700x7000 | - | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 3LS2770 | 2700x7000 | 2x30 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 4LS2770 | 2700x7000 | - | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 2LS3060 | 3000x6000 | - | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 3LS3060 | 3000x6000 | 2x30 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 4LS3060 | 3000x6000 | - | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 2LS3070 | 3000x7000 | - | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 3LS3070 | 3000x7000 | 2x30 | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
| 4LS3070 | 3000x7000 | - | 850r/min | 5-16mm | maximum 4.5G | -3°-10° | 2-100mm | 300mm |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
