Three axis elliptical vibrating screen is a screening equipment designed and developed on the basis of circular vibrating screen and linear screen by integrating their advantages.
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee

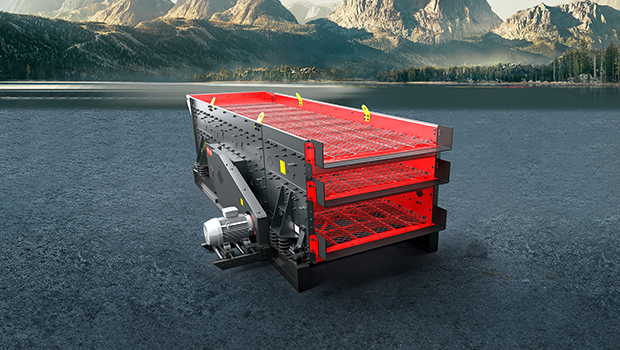

Three axis elliptical vibrating screen is a screening equipment designed and developed on the basis of circular vibrating screen and linear screen by integrating their advantages. Its motion track is elliptical, with high blocking prevention and screening accuracy. It is suitable for screening processes that require high material accuracy.
FTM Machinery is a high-quality LH Series Triaxial Elliptical Screen manufacturer integrating R&D, production, sales, and service. The LH Series Triaxial Elliptical Screen machines have the following outstanding advantages:
The elliptical vibration track integrates the advantages of circular vibration screen and linear vibration screen;
The three-axis vibrator is linked by chrome nickel alloy gear, and the external eccentric block is easy to adjust;
The maximum vibration intensity is 6.0G, bringing better screening effect and preventing mesh blockage;
Horizontal installation, applicable to sites with limited installation height.
| Model | Screen mesh size | Motor power/kw | Number of plies | Rotating speed | Amplitude | Vibration intensity | Installation angle | Separation particle size | Maximum feeding size |
| 2LH1860 | 1800x6000 | 37 | 2 | 645-875rpm | 14-18mm | maximum 6.0G | 0° | 2-130mm | 150mm |
| 3LH1860 | 1800x6000 | 37 | 3 | 645-875rpm | 14-18mm | maximum 6.0G | 0° | 2-130mm | 150mm |
| 2LH2060 | 2100x6000 | 37 | 2 | 645-875rpm | 14-18mm | maximum 6.0G | 0° | 2-130mm | 150mm |
| 3LH2060 | 2100x6000 | 45 | 3 | 645-875rpm | 14-18mm | maximum 6.0G | 0° | 2-130mm | 150mm |
| 2LH2460 | 2400x6000 | 45 | 2 | 645-875rpm | 14-18mm | maximum 6.0G | 0° | 2-130mm | 150mm |
| 3LH2460 | 2400x6000 | 45 | 3 | 645-875rpm | 14-18mm | maximum 6.0G | 0° | 2-130mm | 150mm |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
