A jaw crusher is a primary stone crushing machine used for crushing minerals or rocks into smaller sizes or graves
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee
A jaw crusher is a primary stone crushing machine used for crushing minerals or rocks into smaller sizes or graves. It is a must-have machine in a wide range of fields like mining, quarrying, road aggregate, and construction industries.
With more than 40 years of experience in crushing engineering, FTM Machinery has specially developed high-performance jaw crushers, bringing breakthroughs to stone production lines.
This cone crusher has been outstanding and has run smoothly for two years. It handles high-hardness granite efficiently with very little maintenance, which has greatly reduced our operating costs. This equipment has made a significant difference in boosting our business!"
Jaw crusher machine was first invented by Whitney Blake in 1858. On this basis, FTM Machinery introduces advanced technology and gradually launches 4 hot types of jaw crushers: PE/PEX series, HD German version series, CJ European version series, and mobile jaw crushers.

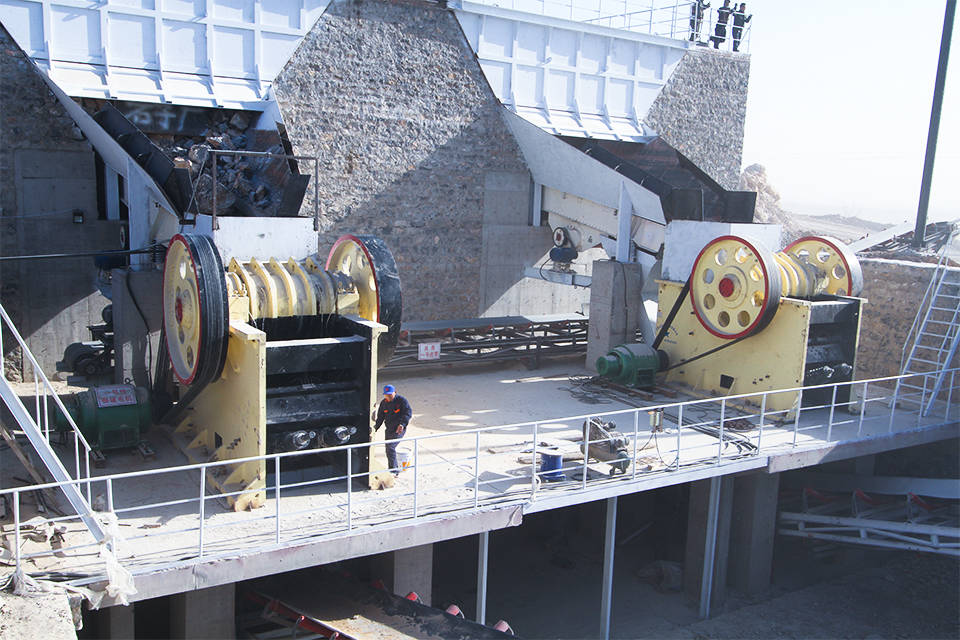

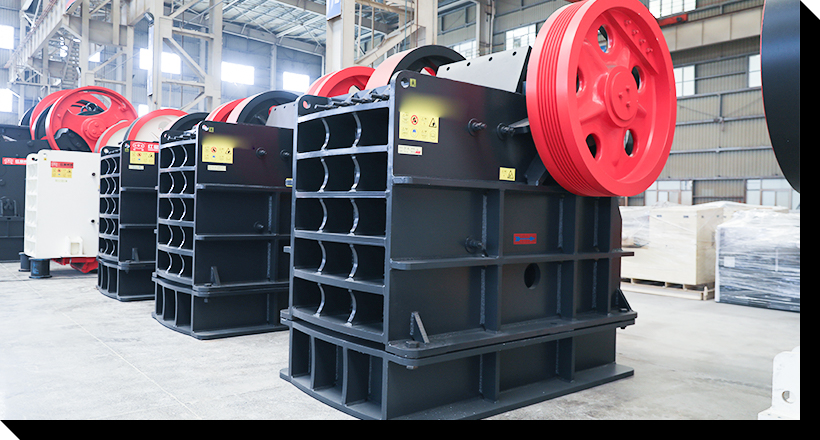

PE/PEX jaw crusher is an earlier type with a simple structure. The PE type is a primary jaw crusher, and the PEX type is a secondary jaw crusher. It is the main crushing equipment in the small stone production lines.

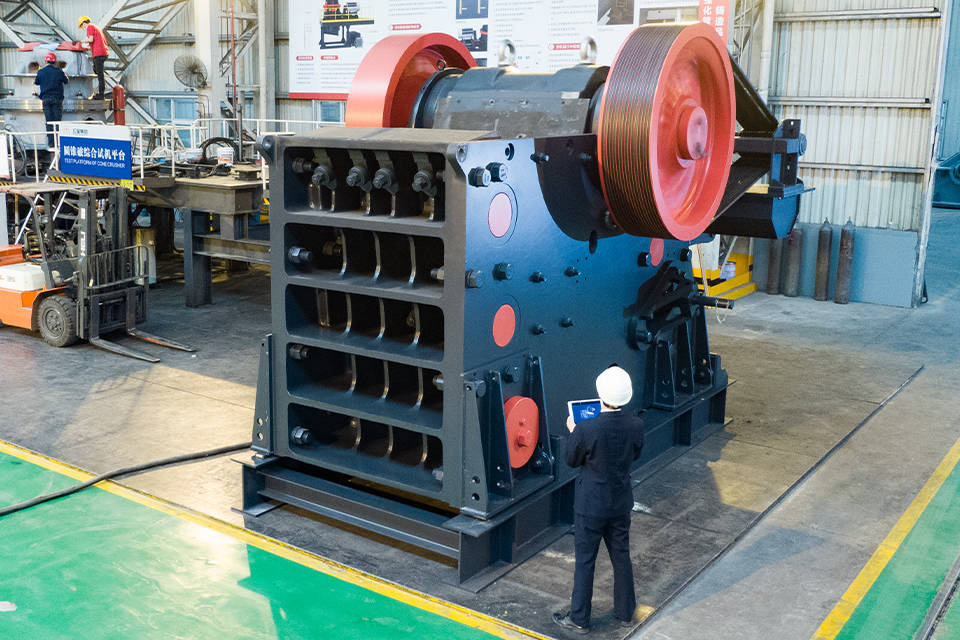

HD series jaw crusher is developed by FTM Machinery combined with German crushing technology. The large inclination angle of the toggle plate makes the output higher and the particle size more uniform. It optimizes the crusher cavity and performs well in processing hard materials.

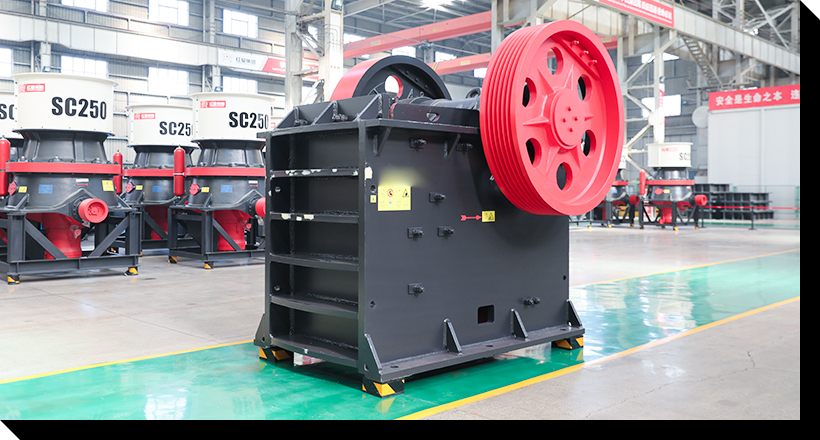

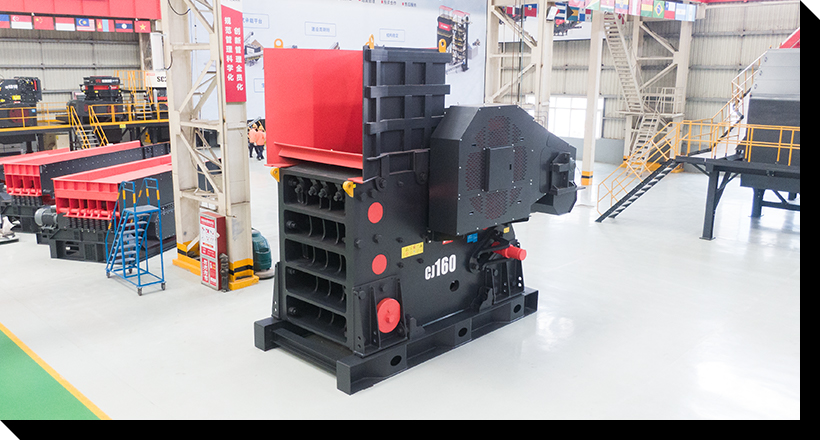

"CJ series jaw crusher is a crushing equipment with advanced technology, which has the advantages of small space occupation, large crushing ratio, and high processing capacity. It is the best choice for large and medium-sized stone production lines."

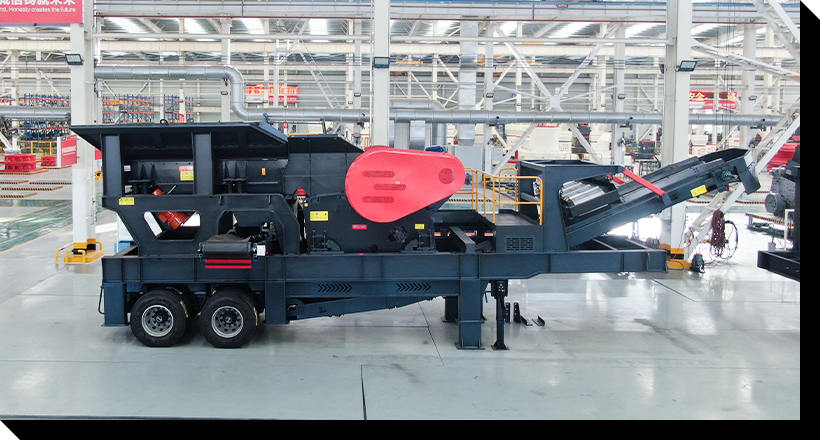

It is composed of a jaw crusher, vibrating feeder, screening equipment, conveying equipment, etc., and becomes a walking coarse crushing production line. Its application saves time spent on material transportation and production costs.
"In addition, according to the different ways of moving, jaw crushers in the market can also be divided into these 4 types: Blake jaw crusher, Dodge jaw crusher, PE universal jaw crusher, and mobile jaw crusher."
FTM Machinery is a high-quality jaw crusher manufacturer integrating R&D, production, sales, and service. The jaw crusher machines have the following outstanding advantages:
Jaw crushers can handle large feed sizes and have a high crushing capacity. They efficiently process materials with compressive strength up to 320 MPa.
Jaw crushers are built with robust and heavy-duty base construction. The use of high-quality components ensures their durability and extended operational life.
The wedge adjusts the discharge opening, and the discharge size can be controlled to meet the different requirements of users.

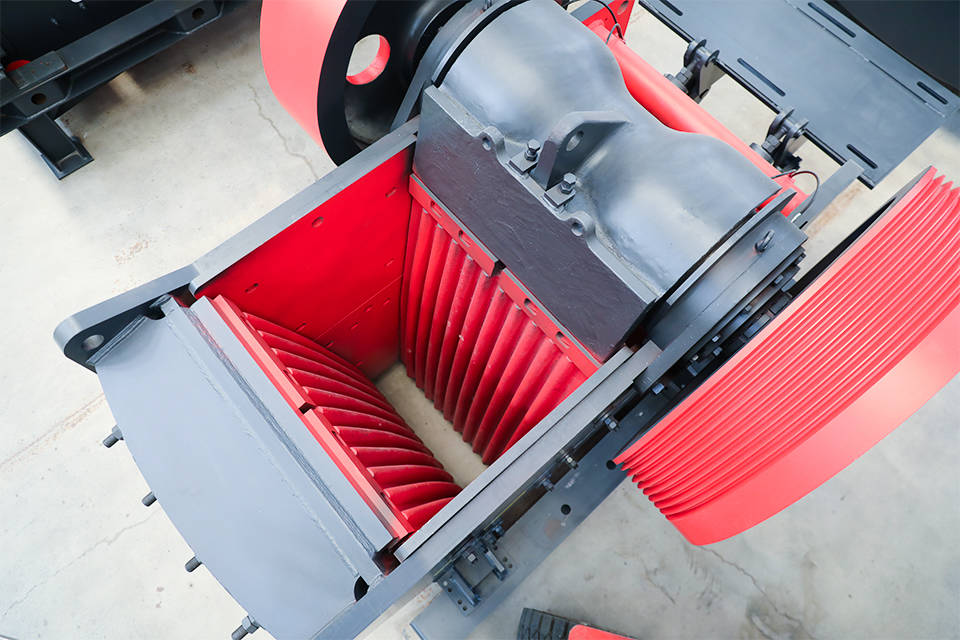

Different jaw plate configurations can be used to suit specific applications. Types of jaw plates, such as high manganese steel, alloy steel, or composite materials, are used to enhance wear resistance.
They are equipped with a safe and reliable lubricating system to improve equipment utilization and reduce maintenance costs.
The jaw crusher can deliver up to 25% more tones per hour than other comparable crushers. Stand-alone energy-saving 15%–30%.

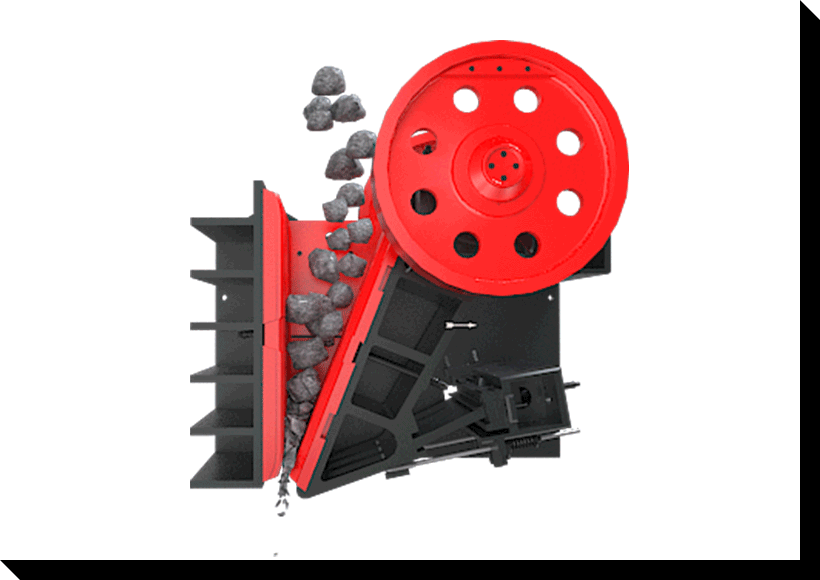

The working principle of a jaw crusher is to crush and break the material through the moving jaw plates. The belt and the pulley are driven by the motor, and the movable jaw is fixed to reciprocate up and down through the action of the eccentric shaft. The moving track of the movable jaw is an arc with the mandrel as its center.
| Model | Feeding opening size(mm) | Max.Feeding size （mm） | Adjustment range of discharge port（mm） | Capacity(t/h) | Power(kw) | Dimensions L×W×H （mm） |
| HD72(57) | 460×720 | 425 | 45-100 | 50-120 | 6P 55 | 2100×1556×1640 |
| HD86(69) | 580×860 | 500 | 50-150 | 60-280 | 8P 75 | 2200×1754×1810 |
| HD98(751) | 680×980 | 630 | 75-175 | 110-410 | 8P 110 | 2660×1960×2175 |
| HD110(912) | 850×1100 | 750 | 100-200 | 230-550 | 6P 132 | 2960×2381×2556 |
| HD125 | 950×1250 | 900 | 125-225 | 280-750 | 8P 160 | 3500×2614×2925 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
