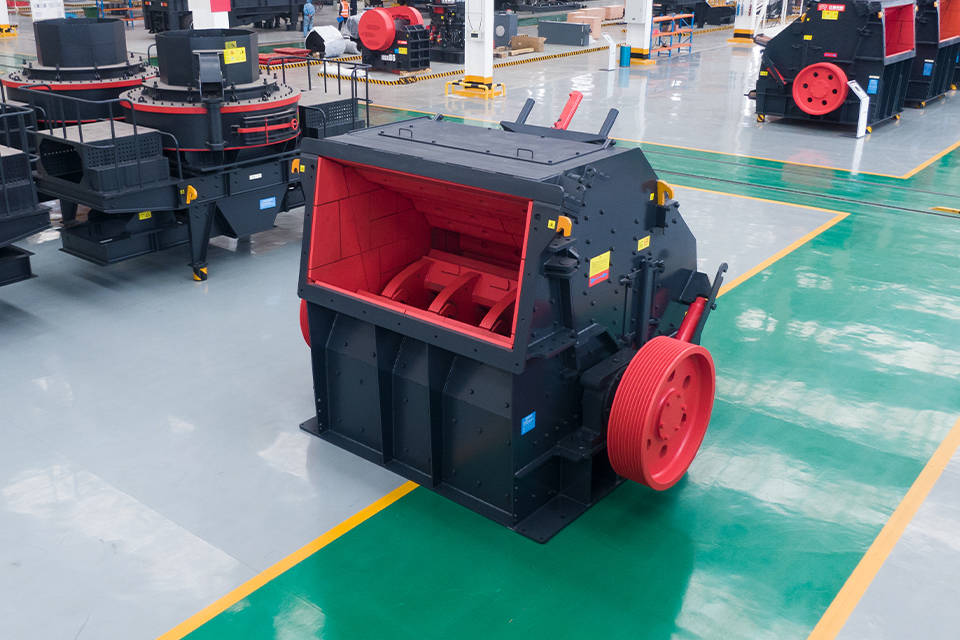

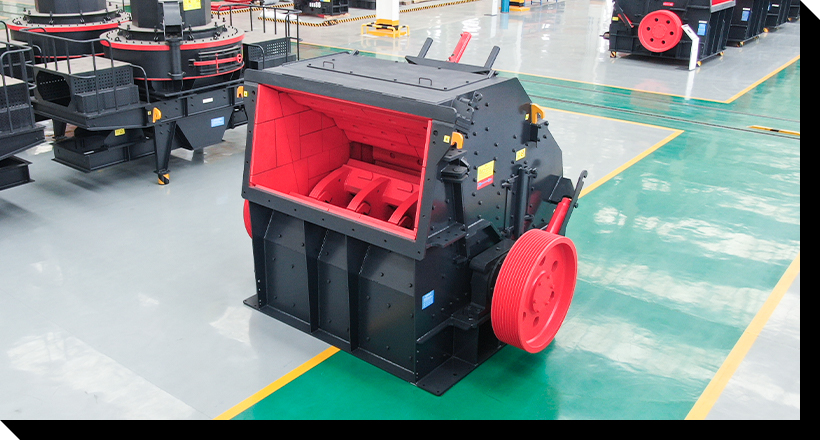

FTM Machinery impact crusher is a processing equipment that uses impact energy to perform secondary and tertiary crushing of medium-hard brittle materials (compressive strength not exceeding 350 MPa)
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee
It is a horizontal shaft impact crusher, often combined with a jaw crusher to form a fixed, portable and track-mounted crushing production line.

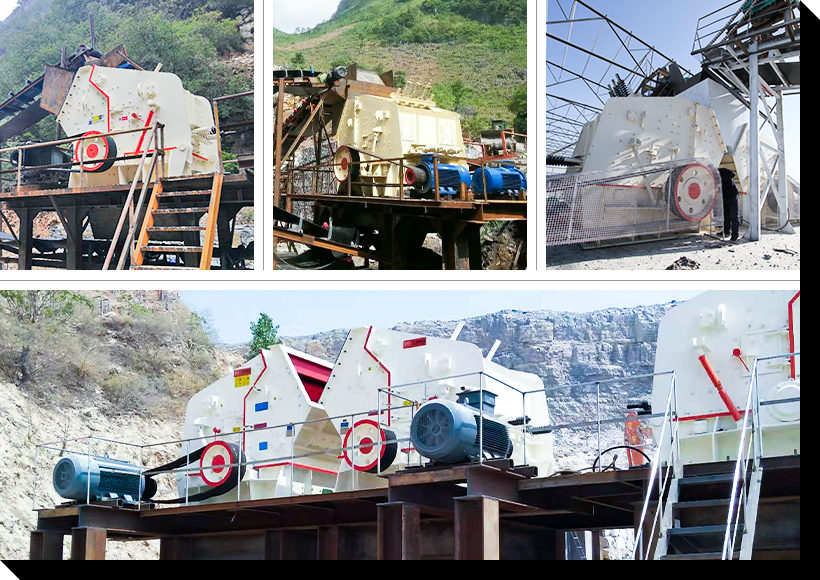

The impact rock crushers can crush materials smaller than 800 mm, such as granite, limestone, concrete, etc. Its discharge size is adjustable. The finished product is uniform and cubic, and can be used in mine crushing, railway, highway, energy, cement, chemical, construction and other industries.
The impact crusher improves 20%–30% more fuel efficient than a standard gear pump, which means the machines have much less hydraulic oil capacity. So, my hydraulic oil reservoirs are about 50%–60% smaller than other machines in this category. Besides, its unique housing design allows me to complete all routine blow bars, rotor, and hammer inspections within 2–3 minutes.

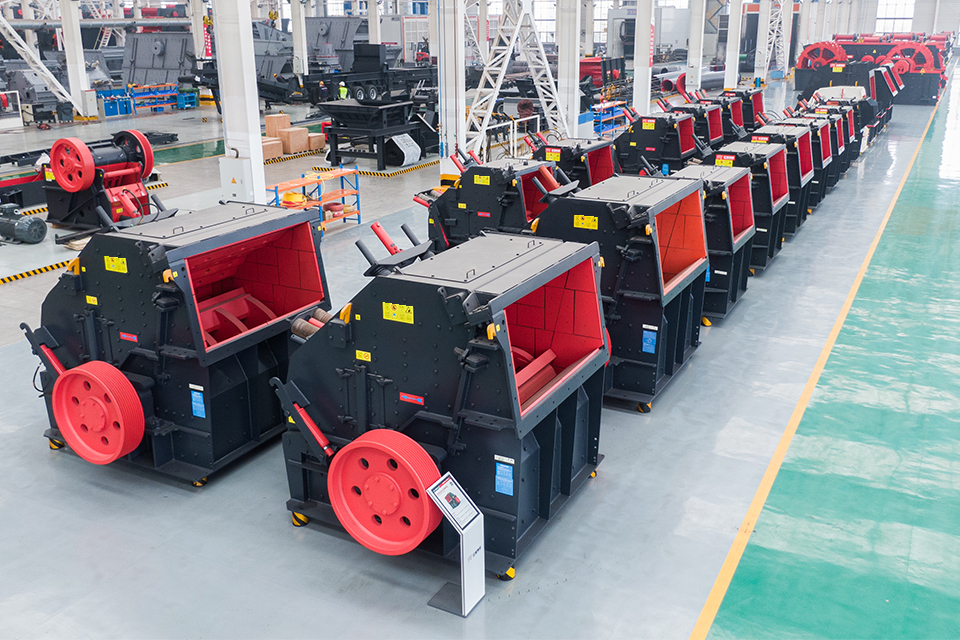

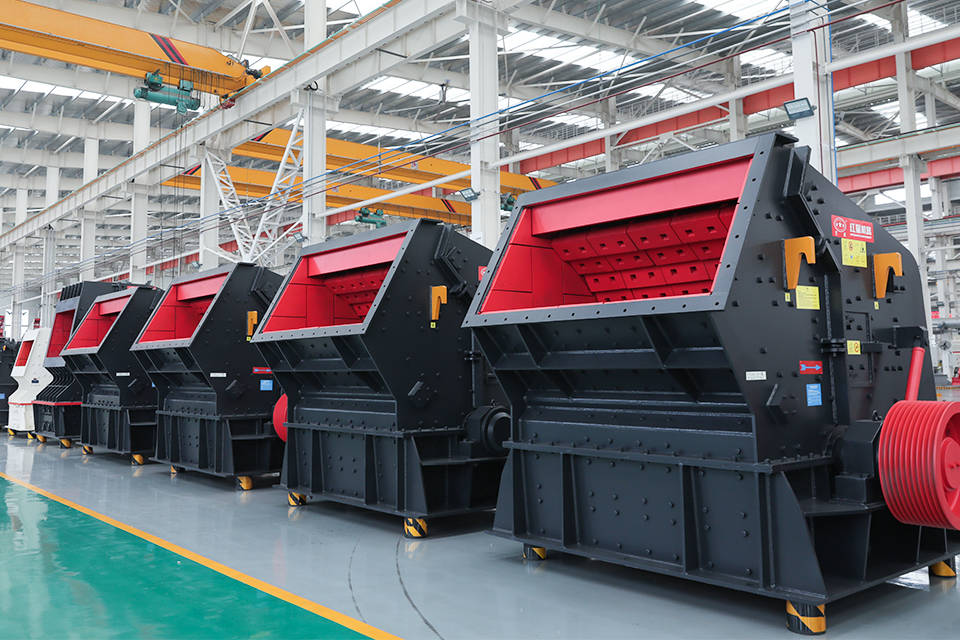

"As one of the world's leading impact crusher manufacturers, FTM Machinery has been committed to innovating crushing technology for more than 40 years. Currently, it has developed and produced PF Series Impact Crushers, CI Series Impact Crushers, HD German Type Impact Crushers, and Mobile Impact Crushers. If there are special production needs, we also support customized production."

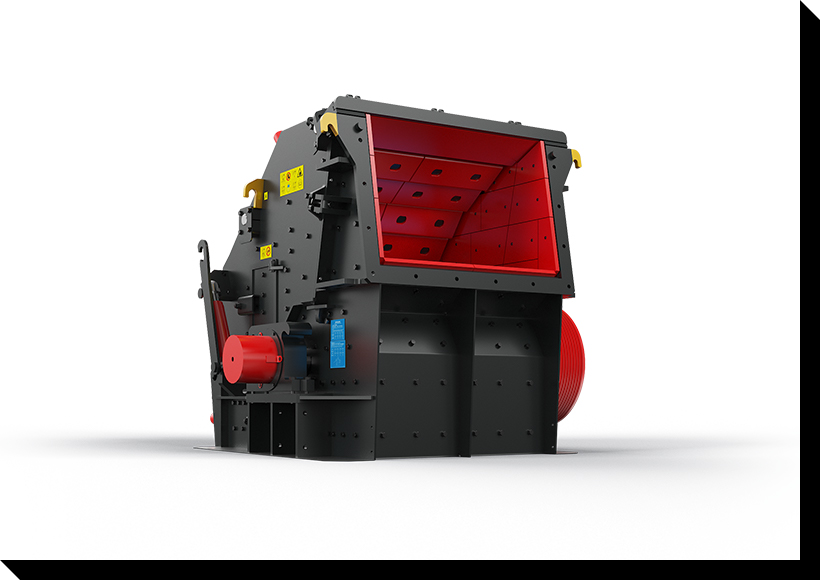

"It has a large feed port, and a high crushing cavity, suitable for materials with high hardness, large lumps, and less stone powder in the product. The crusher has a compact structure, and strong machine rigidity. The rotor has a large moment of inertia."

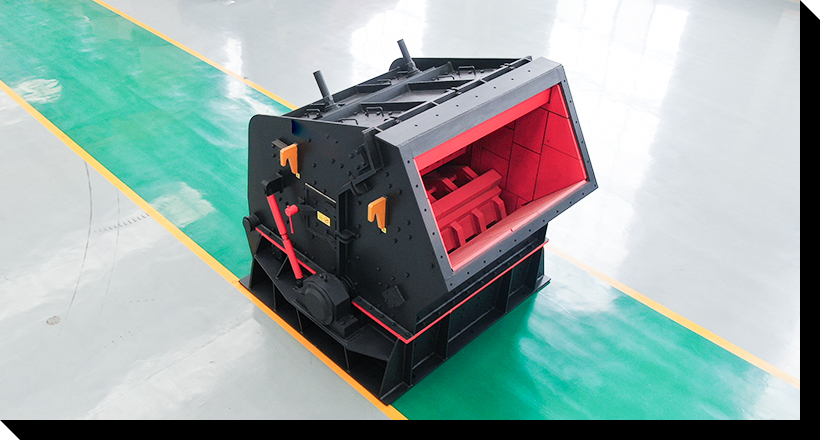

It has a compact structure and can be used on mobile crushing equipment. It occupies a small area and has excellent product grain shape. The gap between the impact plate and the blow bar can be adjusted to control the particle size of the finished product.

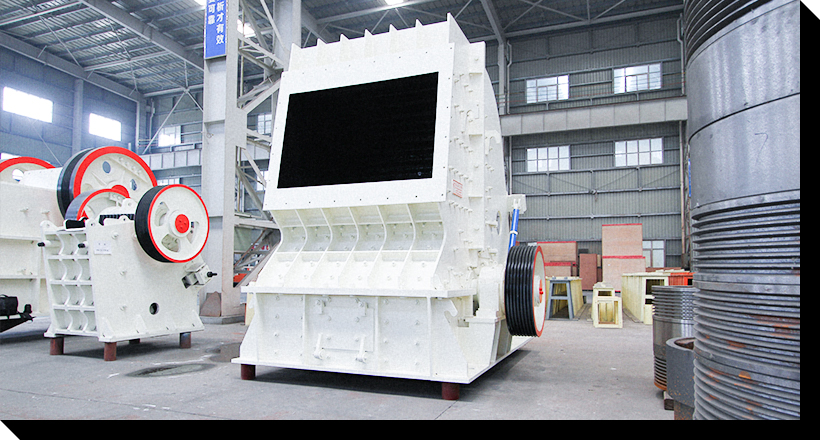

This is a new type of rock crusher with a large capacity of 2,000 t/h. It has a better crushing effect on materials smaller than 800 mm. The popular models are CI1213 and CI1315.
"This crusher is a relatively new crushing model introduced by our company. It sells well, has better performance, and can adapt to a larger output. The crushing ratio can reach more than 50, so it can be used in single-stage crushing occasions."

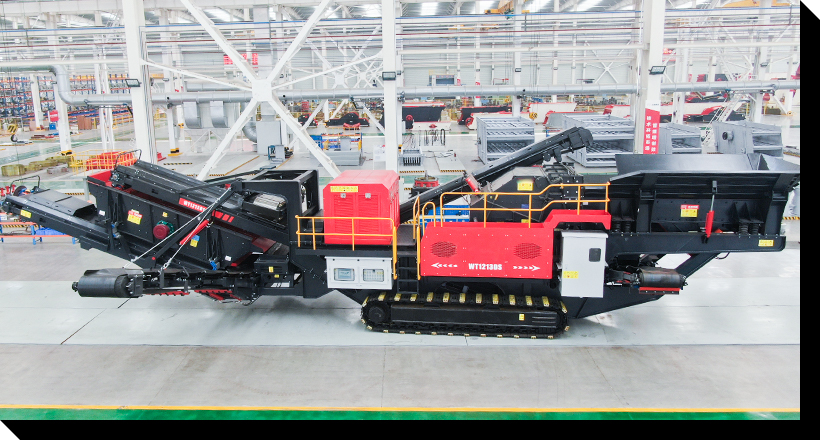

There are two kinds of mobile impact crushers: one is the wheeled type and the other is the tracked type. Both of them can be freely configured.
"Mobile impact crushers can change the site at any time, which is suitable for customers who require flexible change of site. The capacity is 40–400 t/h."
Very high crushing efficiency and large output.
The product has a good grain shape and is uniform.
The material of the blow bar as wearing parts is excellent, and the heavy blow bar design is adopted, which is more durable than the high manganese steel material in the market.
The asymmetrical design of the hopper allows concrete and rocks to hit the hopper first and then pass through the crusher without clogging.
The hydraulic apron adjustment and overload protection system is capable of monitoring the machine's running status at any time, ensuring it remains operational.
Low failure rate and low power consumption.
High-strength frame allows for strong connections and is lightweight for easy maintenance and transportation.
Hydra arm lift and direct drive system design make machine maintenance more convenient.
The sealing device design reduces dust and noise, and is more environmentally friendly and safe.

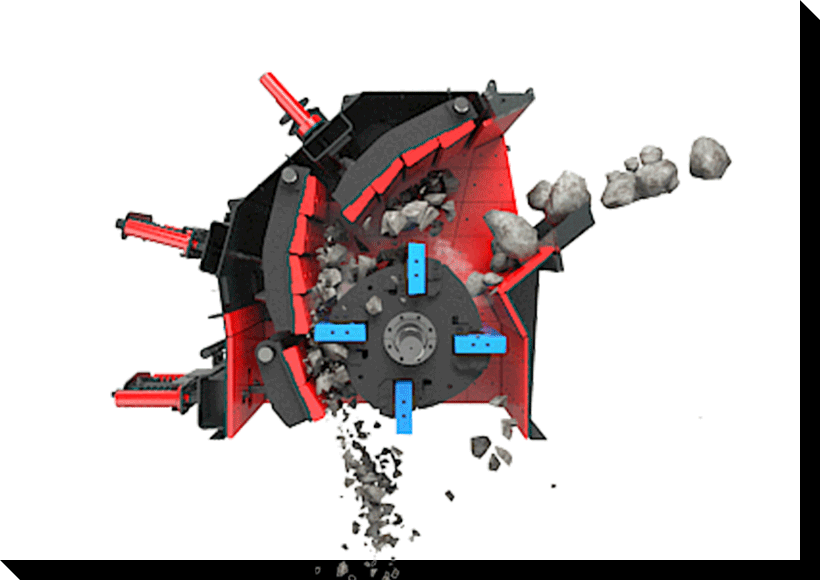

"When the machine is working, the rotor rotates at a high speed driven by the motor. When the material enters the blow bar action area of the crushing chamber, it collides with the blow bar on the rotor and breaks. After that, it is thrown to the impact device to be crushed again, and then bounces from the impact liner back to the blow bar action area for re-crushing."
This process is repeated. The material enters the first, second and third impact chambers from large to small for repeated crushing until the material is crushed to the required particle size and discharged from the discharge port.
| Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
| CI1110 | 250 | 160 | 60-210 | 2826×2087×2285 |
| CI1213 | 300 | 200 | 80-280 | 2903×2530×2411 |
| CI1316 | 300 | 250 | 100-350 | 3320×2770×2535 |
| CI1521 | 350 | 2×(200-250) | 200-600 | 3450×3620×2770 |
| Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
| CI1313 | 600 | 200 | 100-480 | 2972×2560×2937 |
| CI1415 | 600 | 250 | 120-600 | 2985×2790×3068 |
| CI1620 | 800 | 2×(200-250) | 220-900 | 4261×3480×3780 |
| CI2023 | 800 | 2×500 | 400-2000 | 5151×4424×4712 |
| Model | Specifications(mm) | Feed Openting(mm) | Maximum Feeding size（mm） | Capacity（t/h） | Power（KW） | Dimensions L×W×H（mm） |
| PF1007 | ø 1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
| PF1010 | ø 1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
| PF1210 | ø 1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
| PF1214 | ø 1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
| PF1315 | ø 1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
| PF1320 | ø 1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
| PF1520 | ø 1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
| PF1820 | ø 1800×2000 | 1260×2040 | 800 | 300-800 | 4P 630-710 | 4400×3866×4009 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
