HSF Series Heavy grizzly Vibrating Feeder - Designed according to heavy duty working conditions, suitable for feeding large and medium-sized primary crushing equipment in stone, building materials and metallurgical mines. Compact structure, strong impact resistance, external eccentric block design makes the amplitude adjustment of the feeder convenient and quick, independent wear-resistant bar makes the bar gap can be adjusted at will, maximize the granularity of the material entering the crusher, improve the crusher productivity, reduce energy consumption.
The frame is fastened with anti-loosening high-strength torsional shear bolts to ensure the overall strength of the frame;
Excitation force up to 4.5G, amplitude and frequency adjustable, better meet the feeding requirements;
Designed for heavy-duty working conditions with large capacity, the maximum processing capacity is 2000t/h, the body height is low, easy to arrange, and the maximum feeding particle size is 1.5m;
The mechanical vibration unit is designed according to the heavy biaxial structure, gear synchronization, oil bath lubrication, the weight and impact Angle of the eccentric block can be adjusted, and the motor is driven by the flexible coupling;
The bar segment is single/double order structure, the bar spacing is adjustable, the spring seat is installed by the pin shaft, and the feeder can be installed at 0-10°Angle.
It can be equipped with a second screen to screen the waste material and soil.
X-shaped reinforced frame
Stable rubber elastic coupling transmission system

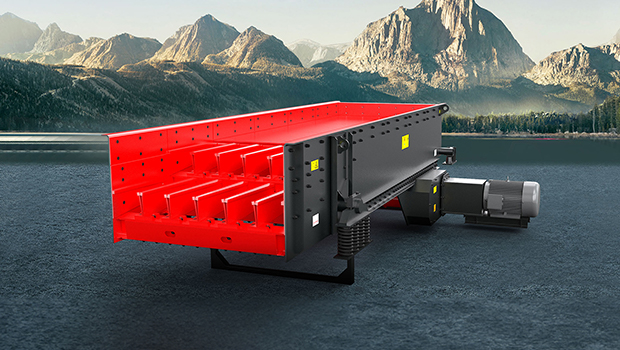

HSF Series Heavy Grizzly Vibrating Feeder
READ MORE| Model | Trough Size (mm) |
Lendth Of The Bar (mm) |
Maximum Feeding Size (mm) |
Application | Maximum Processing Capacity (o°) |
Power (kw) |
| HSF1040 | 1000×4000 | 1×1200 | 700 | Fixed/Mobile | 400-840 | 15 |
| HSF1245 | 1200×4500 | 1×1200 | 800 | Fixed/Mobile | 500-1080 | 22 |
| HSF1262(S) | 1200×6200 | 2×900 | 800 | Fixed | 500-1080 | 22 |
| HSF1345 | 1300×4500 | 1×1200 | 900 | Fixed/Mobile | 750-1150 | 22 |
| HSF1362(S) | 1300×6200 | 2×900 | 900 | Fixed | 750-1150 | 30 |
| HSF1562(S) | 1500×6200 | 2×900 | 1000 | Fixed | 800-1320 | 30 |
| HSF1862(S) | 1800×6200 | 2×900 | 1200 | Fixed | 1040-1560 | 37 |
| HSF2162 | 2100×6200 | 2×900 | 1500 | Fixed/Mobile | 1200-1860 | 37 |
| HSF2462 | 2400×6200 | 2×900 | 1500 | Fixed | 1360-2040 | 2×30 |
the types with （S） means you can choose additional sieve layer
HST Series split-type feeding-screening unit is a combined type designed and developed by our company, for high content and high viscosity of fine-grained materials.
