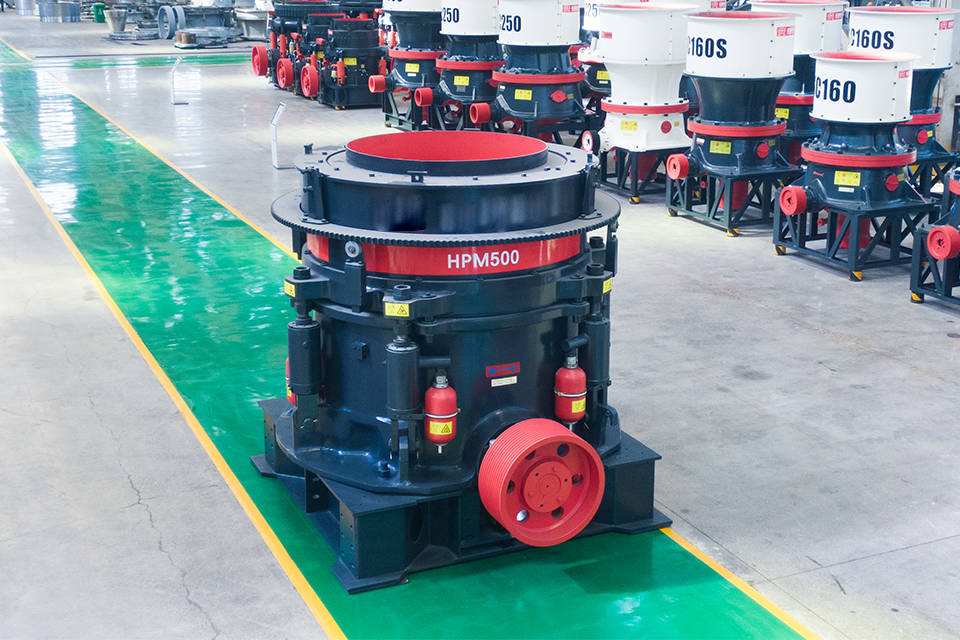

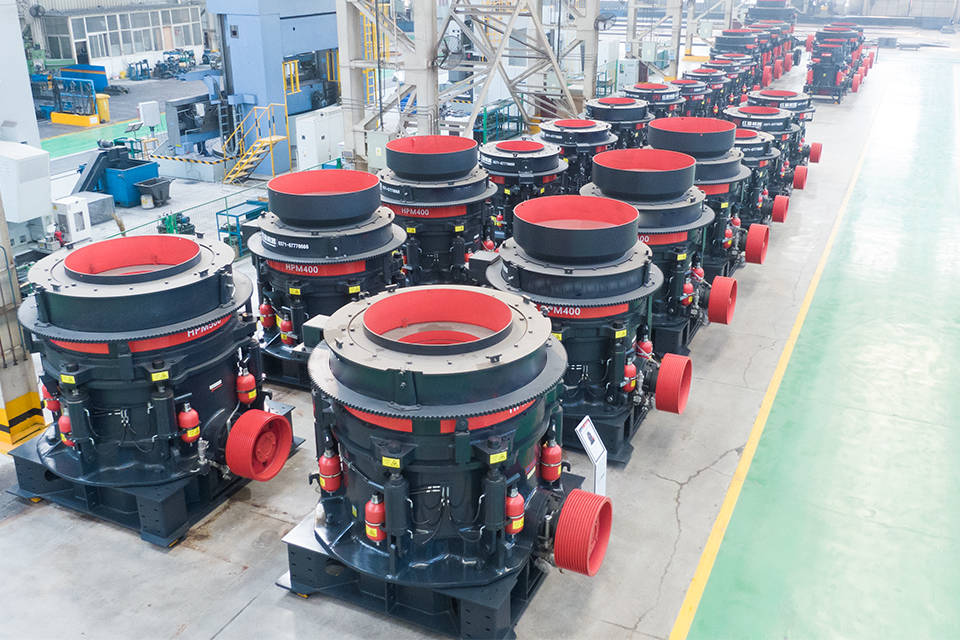

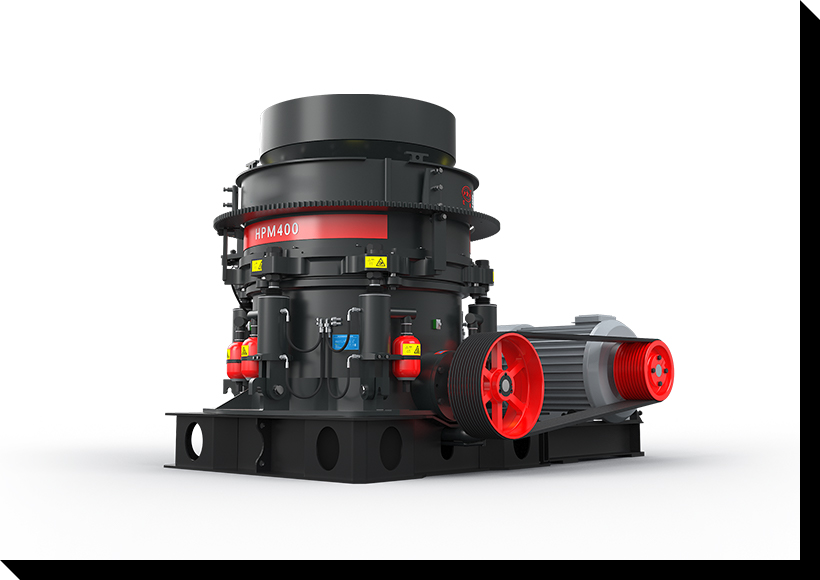

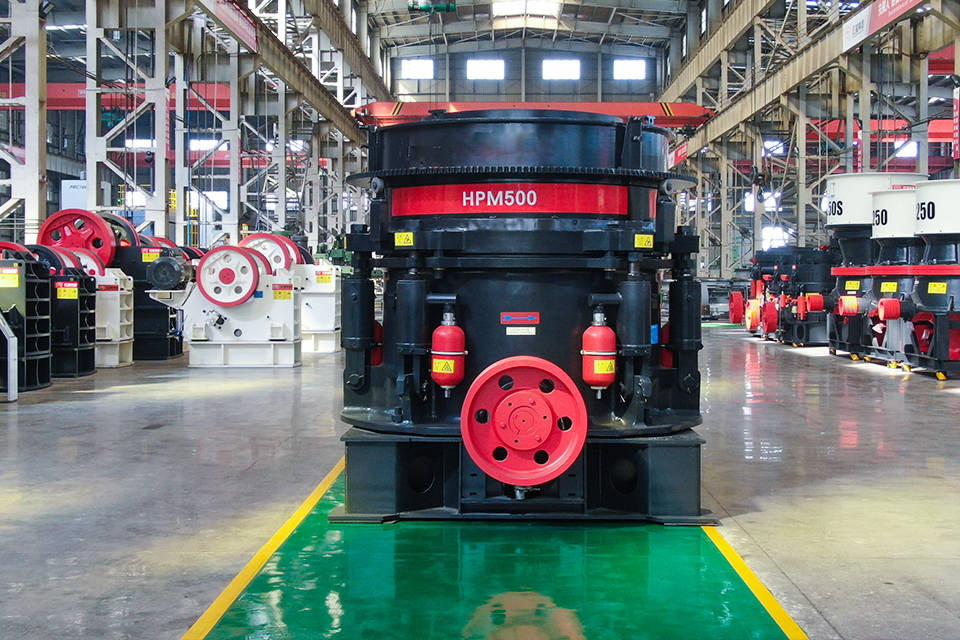

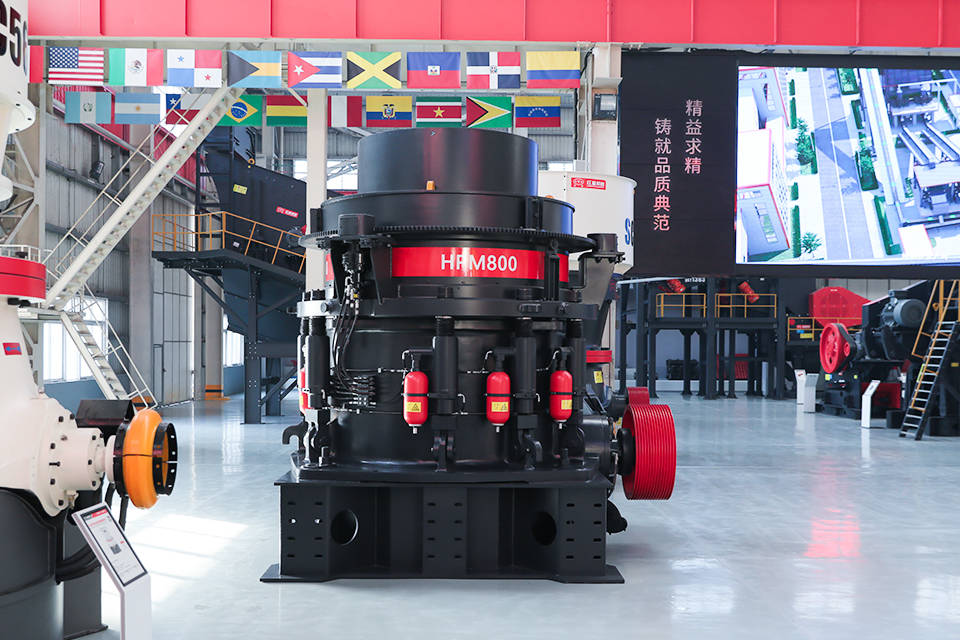

HPM series multi-cylinder cone crusher is a new type of cone crusher which is suitable for crushing high hard materials and has strict requirements on the grain shape of products.
Applicable Materials:
Stone, aggregate, gravel, limestone, quartz, basalt, iron ore, gold ore, etc.
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee
Multi-cylinder hydraulic cone crusher is a new type of cone crusher developed based on the introduction of new German technology, with higher crushing capacity and crushing efficiency. It is used for secondary crushing, fine crushing, and ultra-fine crushing of hard materials with a particle size of 0–385 mm.

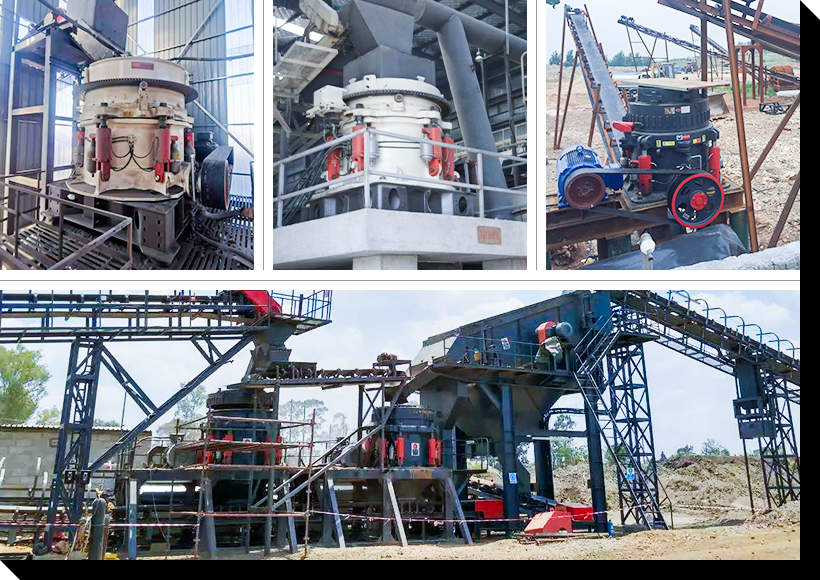

"Multi-cylinder hydraulic cone crusher is a brand-new product that replaces the spring cone crusher in today's mining construction industry. It is ideal equipment for large stone quarries and mining crushing. Hydraulic cone crusher machines are used to crush medium hardness ores and rocks, such as pebble, granite, basalt, limestone, quartzite, diabase, iron ore, gold ore, copper ore, etc. Applications are especially common in these industries: Mining factory Quarry factory Aggregate factory Road building Construction work Energy and chemistry".
"This cone-crushing production line exceeded my expectations. The finished products after processing are of good quality, and the cubic content of the products is more than 85%. After selling them, the profit is high. I am very grateful to FTM Machinery and will continue to expand the business in the future."
The performance features of FTM Machinery multi-cylinder hydraulic cone crusher are highlighted in the following aspects:
The multi-cylinder hydraulic cone crusher perfectly combines the crushing stroke, crushing speed, and crushing cavity shape. Under the same fixed cone diameter, the output is 30%–60% higher than the spring cone crusher.
The automatic control system can realize overload protection, over-iron protection, hydraulic cavity clearing, and discharge port adjustment. The high degree of automation reduces downtime and improves work efficiency.
The machine adopts a special crushing cavity and lamination crushing principle, which significantly increases the proportion of cubes in the finished products. Needle-shaped stones are reduced and the particle size is more uniform.
The discharge port is hydraulically adjusted to control the discharge size in time. Easy operation and high reliability. The crusher can be operated with full feed, reducing operating costs.
Unique hydraulic and lubrication system design, with double insurance. Protects the hydraulic cone crusher when overloaded, and the bearings are well lubricated.
The wearing parts are made of wear-resistant high-manganese steel, which has small loss and greatly improves the service life of the equipment. Maintenance is simple, bringing considerable economic benefits to customers."
"The structure of the multi-cylinder hydraulic cone crusher is more complicated. When working, the motor drives the transmission shaft through the pulley or coupling. The moving cone does periodic rotation-swing movement under the force of the eccentric sleeve. The raw materials are squeezed, impacted, and finally broken in the crushing chamber. "
| Model | Cavities | Broken cone big end diameter（mm） | Feeding size（mm） | Maximum Feeding size（mm） | Adjusting Range of Discharge port（mm） | Capacity（t/h） | Power（kw） | Weight of main machine（t） |
| HPM200 | C1 | 900 | 185 | 145 | 22 | 160~250 | 160 | 11 |
| C2 | 125 | 100 | 18 | 145~250 | ||||
| C3 | 95 | 75 | 14 | 120~250 | ||||
| F1 | 76 | 60 | 12 | 108~210 | ||||
| F2 | 54 | 45 | 10 | 81~210 | ||||
| HPM300 | C1 | 1100 | 235 | 190 | 26 | 230~445 | 220 | 20 |
| C2 | 211 | 170 | 20 | 200~445 | ||||
| C3 | 150 | 120 | 16 | 180~445 | ||||
| C4 | 107 | 85 | 14 | 160~220 | ||||
| F1 | 53 | 40 | 12 | 140~220 | ||||
| HPM400 | C1 | 1400 | 299 | 240 | 35 | 270~630 | 315 | 27 |
| C2 | 252 | 200 | 25 | 252~630 | ||||
| C3 | 198 | 160 | 25 | 243~630 | ||||
| C4 | 111 | 190 | 18 | 210~630 | ||||
| F1 | 92 | 75 | 15 | 162~370 | ||||
| F2 | 52 | 40 | 13 | 126~370 | ||||
| HPM500 | C1 | 1500 | 335 | 270 | 38 | 365~790 | 400 | 40 |
| C2 | 286 | 230 | 30 | 328~790 | ||||
| C3 | 204 | 165 | 22 | 280~790 | ||||
| C4 | 133 | 105 | 20 | 202~450 | ||||
| F1 | 95 | 75 | 16 | 175~450 | ||||
| F2 | 52 | 42 | 8 | 158~450 | ||||
| HPM650 | C1 | 328 | 262 | 30 | 386~790 | 500 | ||
| C2 | 279 | 225 | 25 | 348~790 | ||||
| C3 | 196 | 175 | 20 | 300~790 | ||||
| F1 | 106 | 85 | 13 | 280~530 | ||||
| F2 | 52 | 42 | 9 | 220~530 | ||||
| HPM800 | C1 | 2000 | 353 | 280 | 38 | 616~1100 | 630 | 70 |
| C2 | 297 | 240 | 38 | 522~1100 | ||||
| C3 | 267 | 214 | 25 | 495~1100 | ||||
| C4 | 219 | 175 | 22 | 380~1100 | ||||
| F1 | 155 | 125 | 20 | 328~730 | ||||
| F2 | 92 | 75 | 16 | 270~730 | ||||
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
