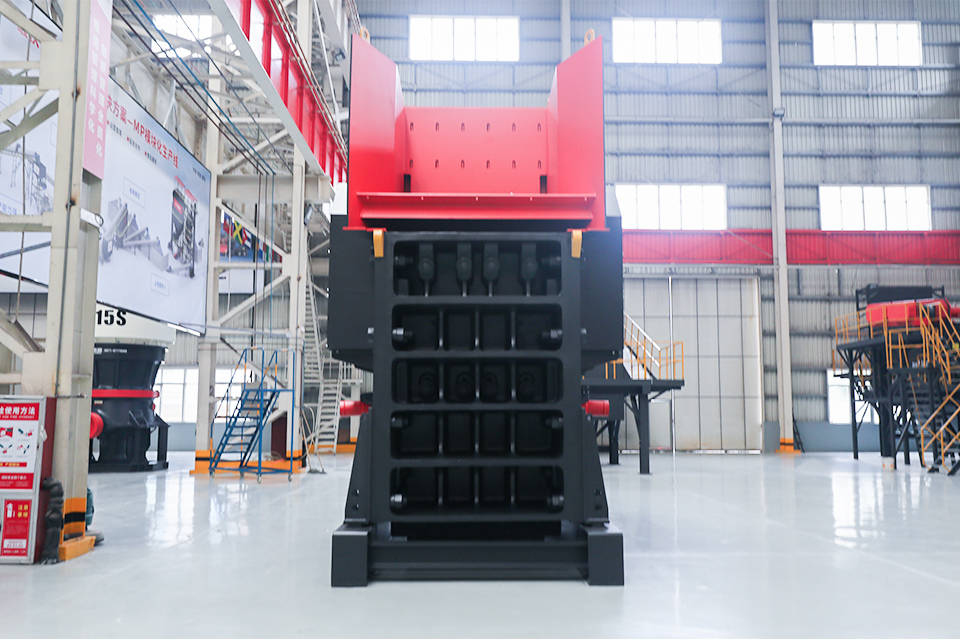

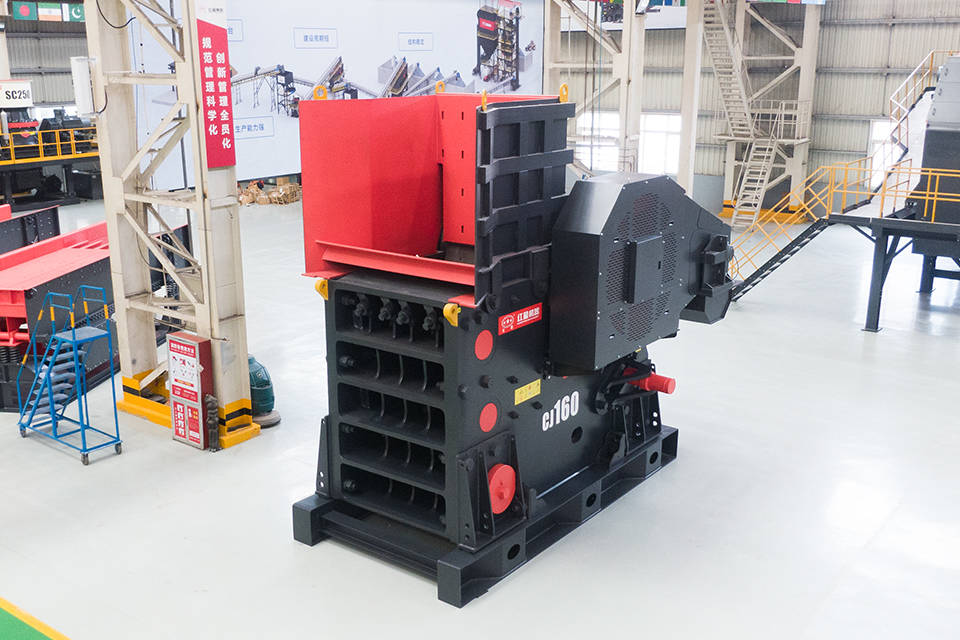

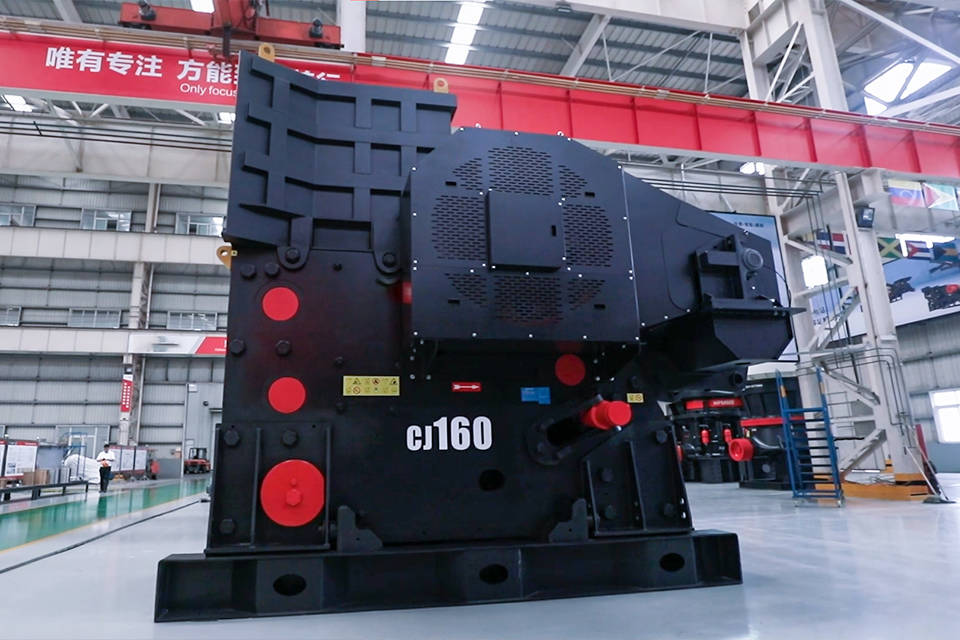

The CJ series jaw crusher is with excellent performance introduced by Hongxing Heavy Industry Machinery Co., Ltd. based on the needs of customers. Different from the traditional jaw crusher, there are significant improvements in the crusher's motion parameters, structural forms, and adjustment methods.

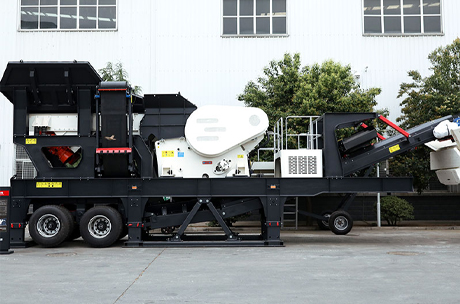

The CJ series jaw crusher commonly used for primary or secondary crushing in the mining material crushing. It has less occupied space, larger crushing ratio and more stable operation. It has more advantages in transportation, installation, maintenance and adjustment. Particularly suitable for fixed crushing lines and mobile crushing plants.
The deep V cavity allows the material into the crushing cavity without any obstruction, thus ensuring the best feeding ability.
Greater fatigue resistance, higher reliability, and longer service life provide a good operating environment for the equipment.
Large crushing ratio and stable operation, which fully guarantees the high yield and high efficiency of the crushing operation.
Bolted frame

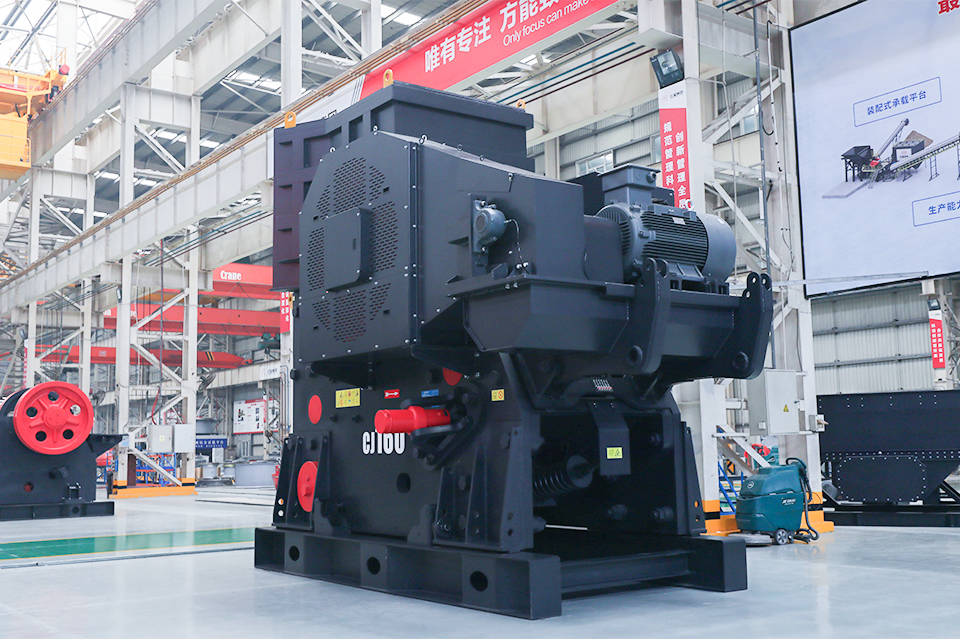

Integral motor bracket

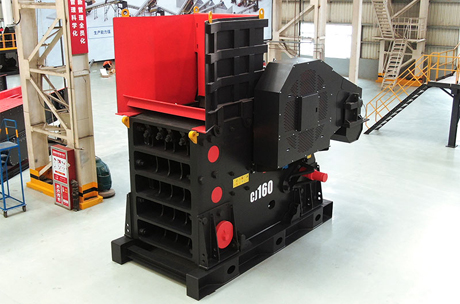

CJ Series European Type Jaw Crusher
READ MORE| Model | Maximum Feeding size（mm） | Feeding opening size L×W（mm） | Adjustment range of discharge port（mm） | Capacity（t/h） | Power（KW） | Dimensions L×W×H（mm） |
| CJ96 | 480 | 930×580 | 60-175 | 105-390 | 4P 90 | 2850×2270×1950 |
| CJ106 | 560 | 1060×700 | 70-200 | 150-500 | 4P 110 | 3280×2580×2400 |
| CJ120 | 700 | 1200×870 | 70-200 | 175-610 | 4P 160 | 3700×2790×2950 |
| CJ125 | 760 | 1250×950 | 100-250 | 270-831 | 4P 160 | 4230×2780×2960 |
| CJ150 | 960 | 1400×1200 | 125-250 | 340-880 | 4P 200 | 5030×3440×3970 |
| CJ160 | 960 | 1600×1200 | 150-300 | 430-1145 | 4P 250 | 5780×3460×3580 |
| CJ200 | 1200 | 2000×1500 | 175-300 | 630-1590 | 6P 400 | 6600×3000×4400 |
| CJ1511 | 850 | 1500×1070 | 125-300 | 380-1080 | 6P 200 | 4130×3000×3330 |
| CJ1513 | 1040 | 1500×1300 | 150-300 | 480-1160 | 6P 200 | 4620×2890×4190 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Maximum Feeding size（mm） | Feeding opening size L×W（mm） | Adjustment range of discharge port（mm） | Capacity（t/h） | Power（KW） | Dimensions L×W×H（mm） |
| CJ96 | 480 | 930×580 | 60-175 | 105-390 | 4P 90 | 2850×2270×1950 |
| CJ106 | 560 | 1060×700 | 70-200 | 150-500 | 4P 110 | 3280×2580×2400 |
| CJ120 | 700 | 1200×870 | 70-200 | 175-610 | 4P 160 | 3700×2790×2950 |
| CJ125 | 760 | 1250×950 | 100-250 | 270-831 | 4P 160 | 4230×2780×2960 |
| CJ150 | 960 | 1400×1200 | 125-250 | 340-880 | 4P 200 | 5030×3440×3970 |
| CJ160 | 960 | 1600×1200 | 150-300 | 430-1145 | 4P 250 | 5780×3460×3580 |
| CJ200 | 1200 | 2000×1500 | 175-300 | 630-1435 | 6P 400 | 6600×4030×4400 |
| CJ1511 | 850 | 1500×1070 | 125-300 | 425-1195 | 6P 200 | 4130×3000×3330 |
| CJ1513 | 1040 | 1500×1300 | 150-300 | 530-1280 | 6P 200 | 4620×2890×4190 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
